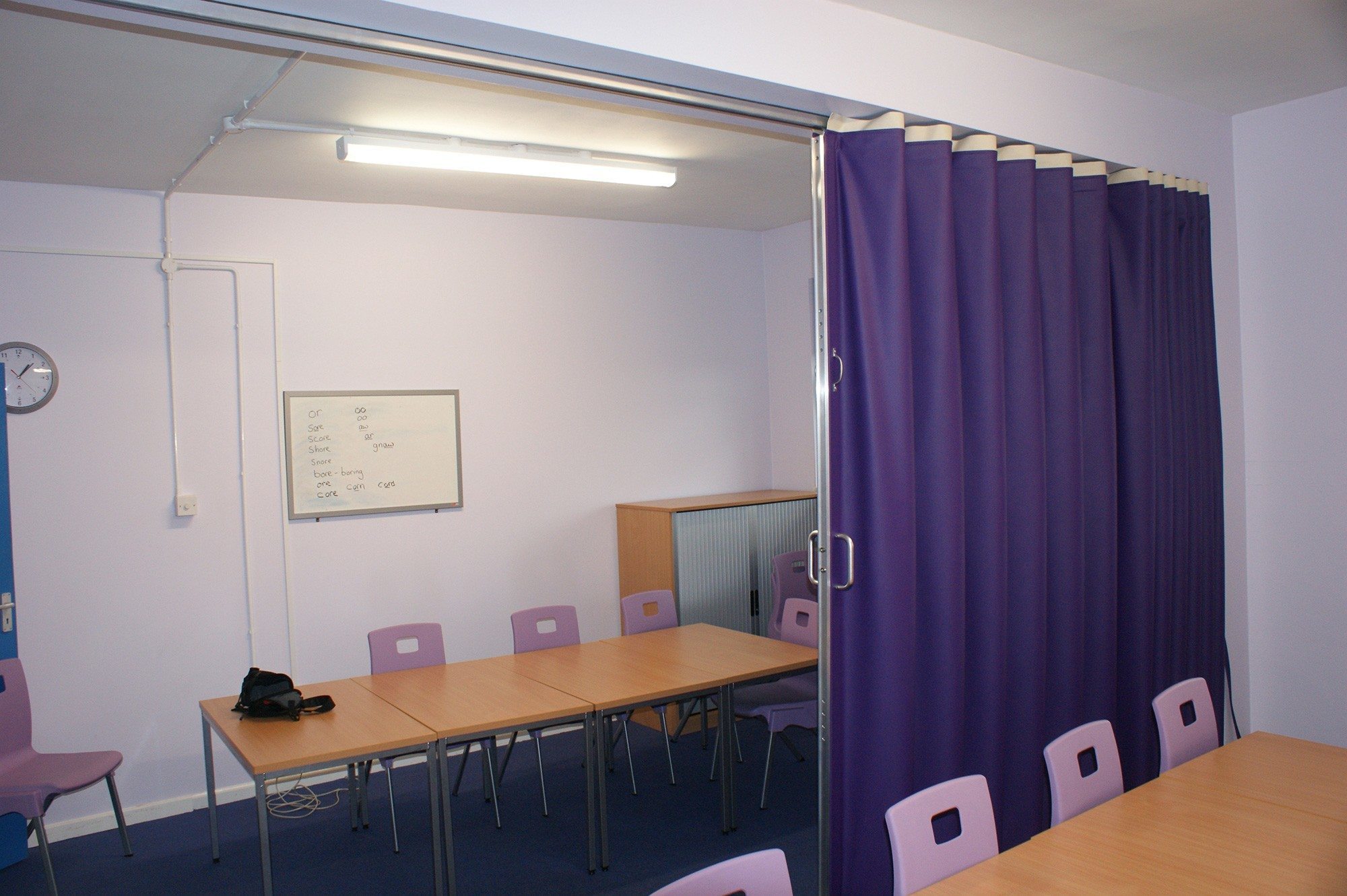

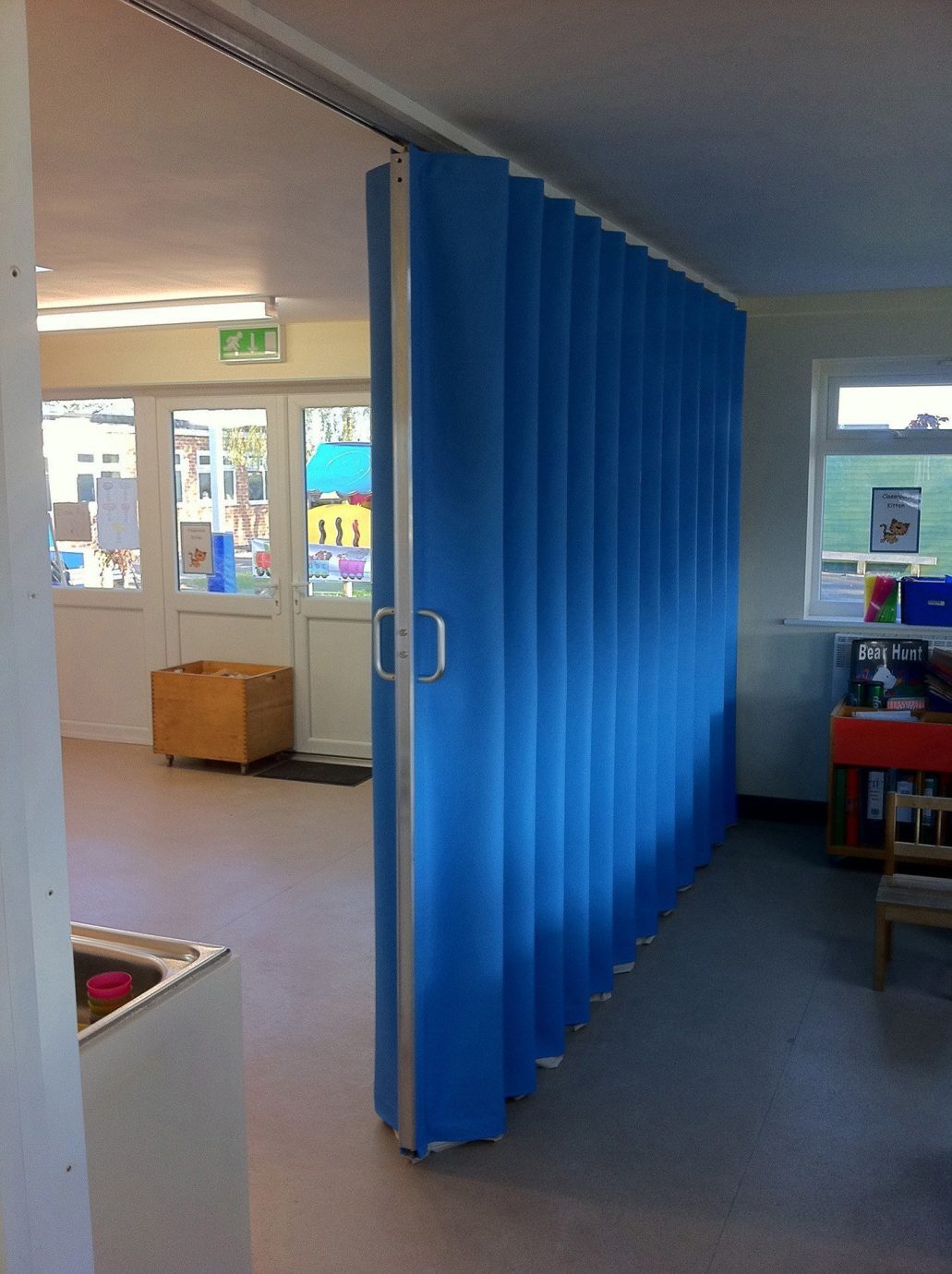

Alpha Concertina Partition Walls

This range of Vinyl Concertina partitions offering a low cost alternative to the higher specification movable walls.

Introduction

Where budget is the primary factor, the Alpha Range of Vinyl Concertina partitions offers a low cost alternative to the higher specification movable walls.

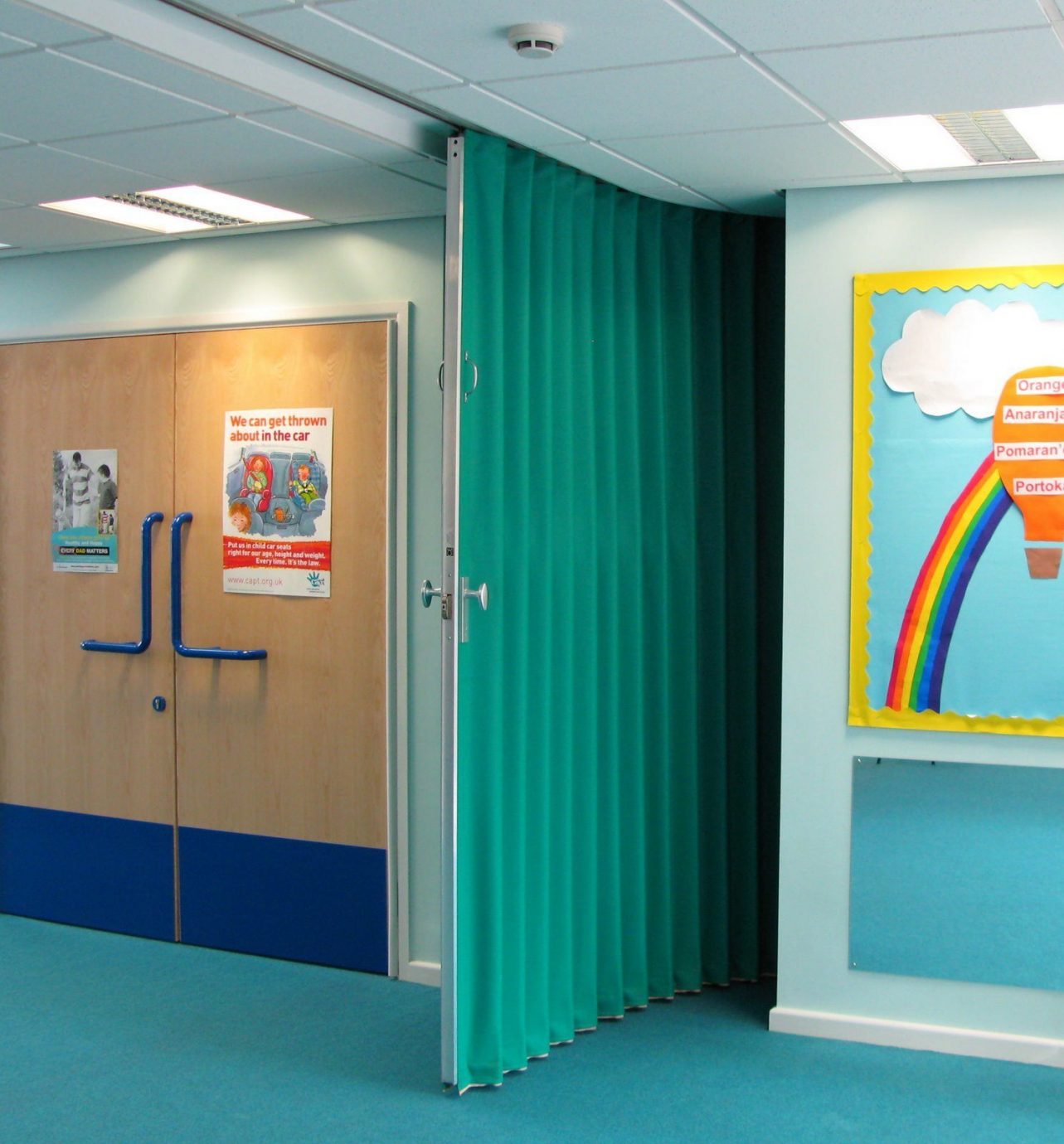

An easy to use system, the Alpha Range is ideally suited for applications such as schools, nurseries, village halls and hospitals.

Constructed with a steel pantograph frame and covered with a strong and durable fabric backed vinyl produced by the leading wall covering supplier Kayospruce.

Technical Specs

Acoustic rating from 15-35dB
Applications up to 6,000mm high
Unlimited opening width
Available as single wing, bi-parting or floating units
Wider internal hinges available to reduce stacking depth
Top hung with no floor track and floor supported options

Surface finish is class ‘1’ & ‘0’ to BS476
Fully washable and mould & mildew resistant

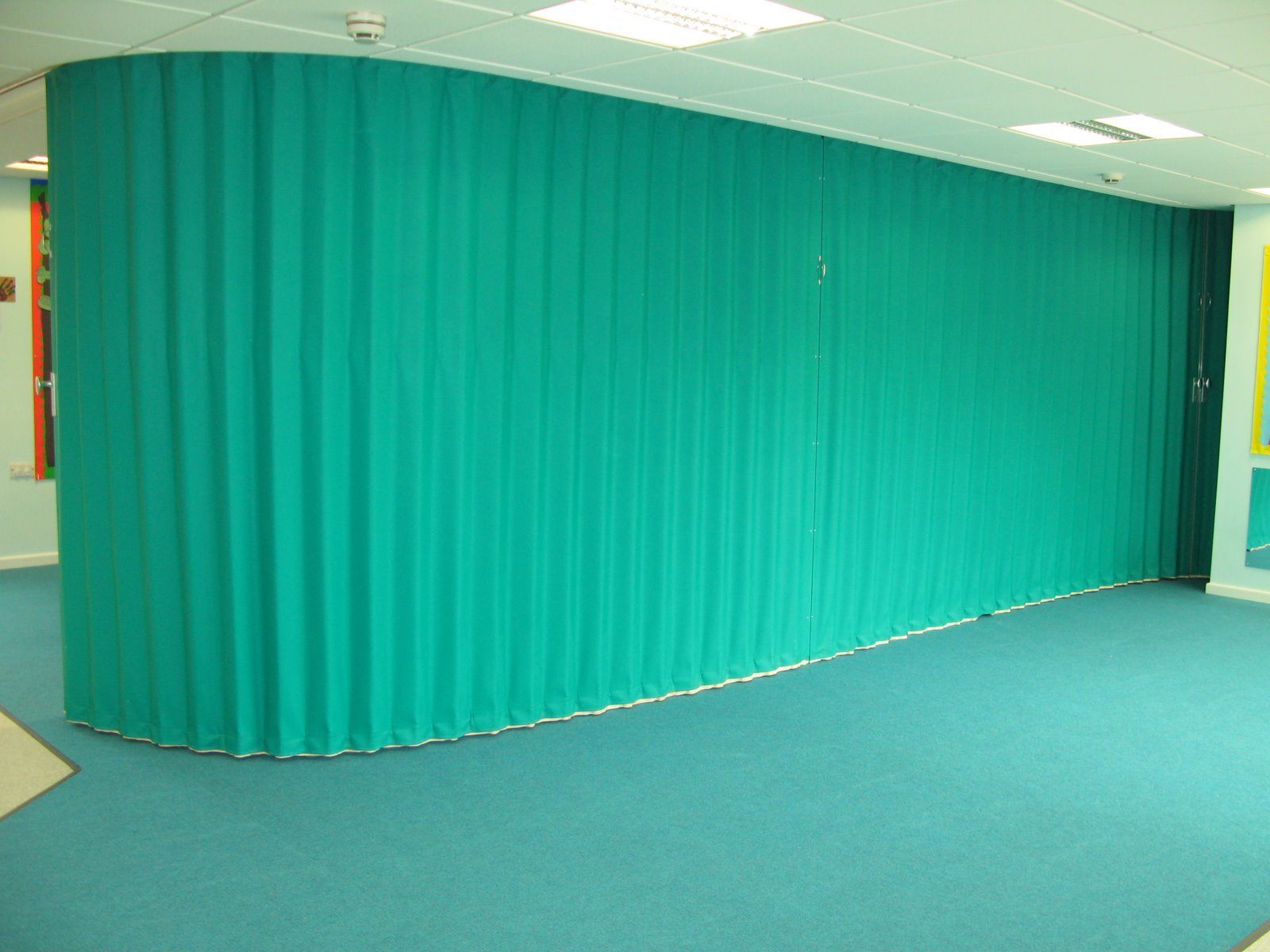

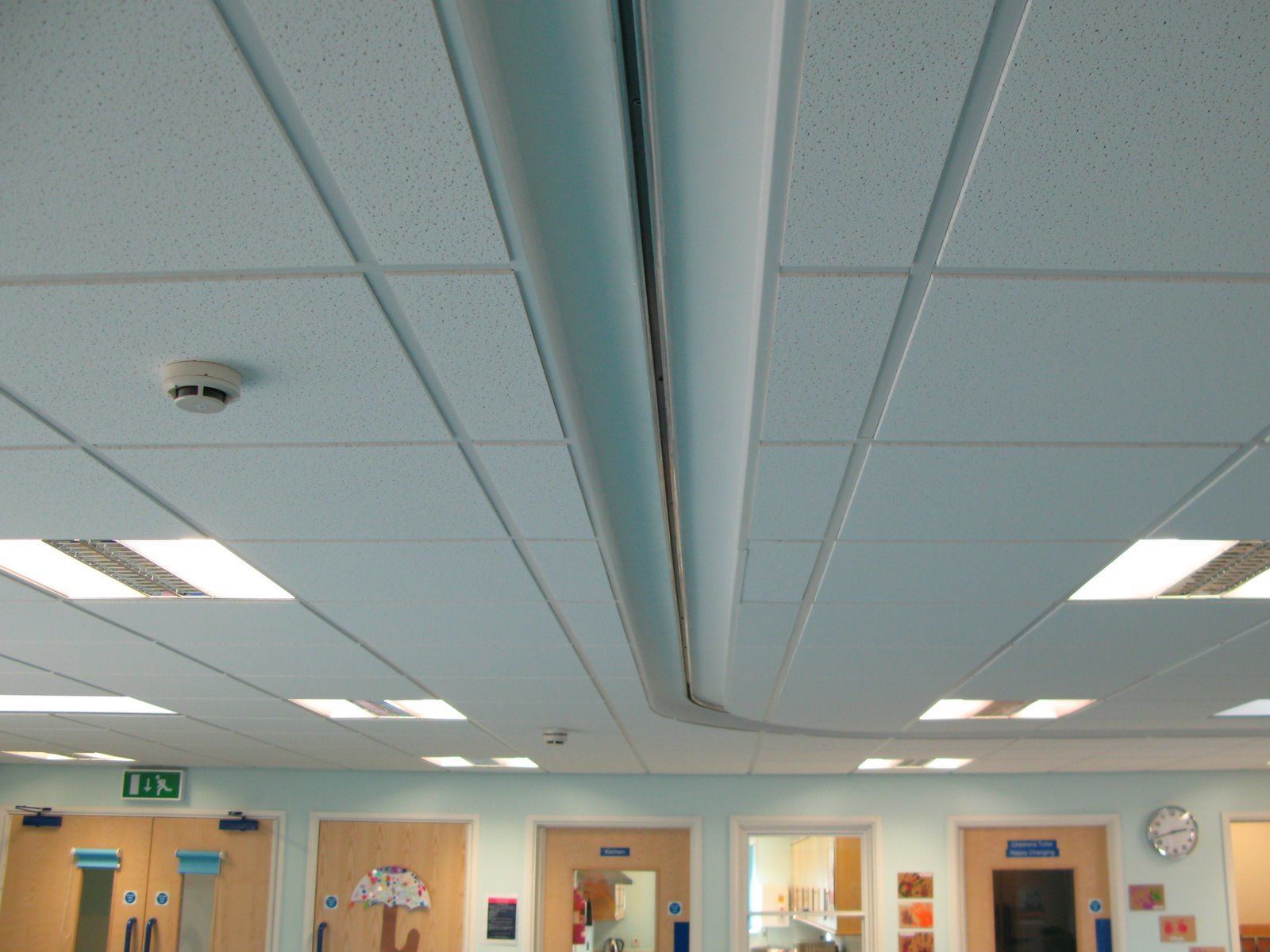

Partitions can be curved to a maximum 1,000mm radius
Partitions can incorporate vision panels
Full maintenance contracts available
Manufactured in the UK

Finishing Options

Our wall systems are available in a wide array of surface finishes to suit the design of its surroundings. Plus! Add bespoke surface decals.

Priming Options

Uni Colours

Wood Grain

Stacking Options

There are 2 common stacking options for the Alpha Range as shown below:

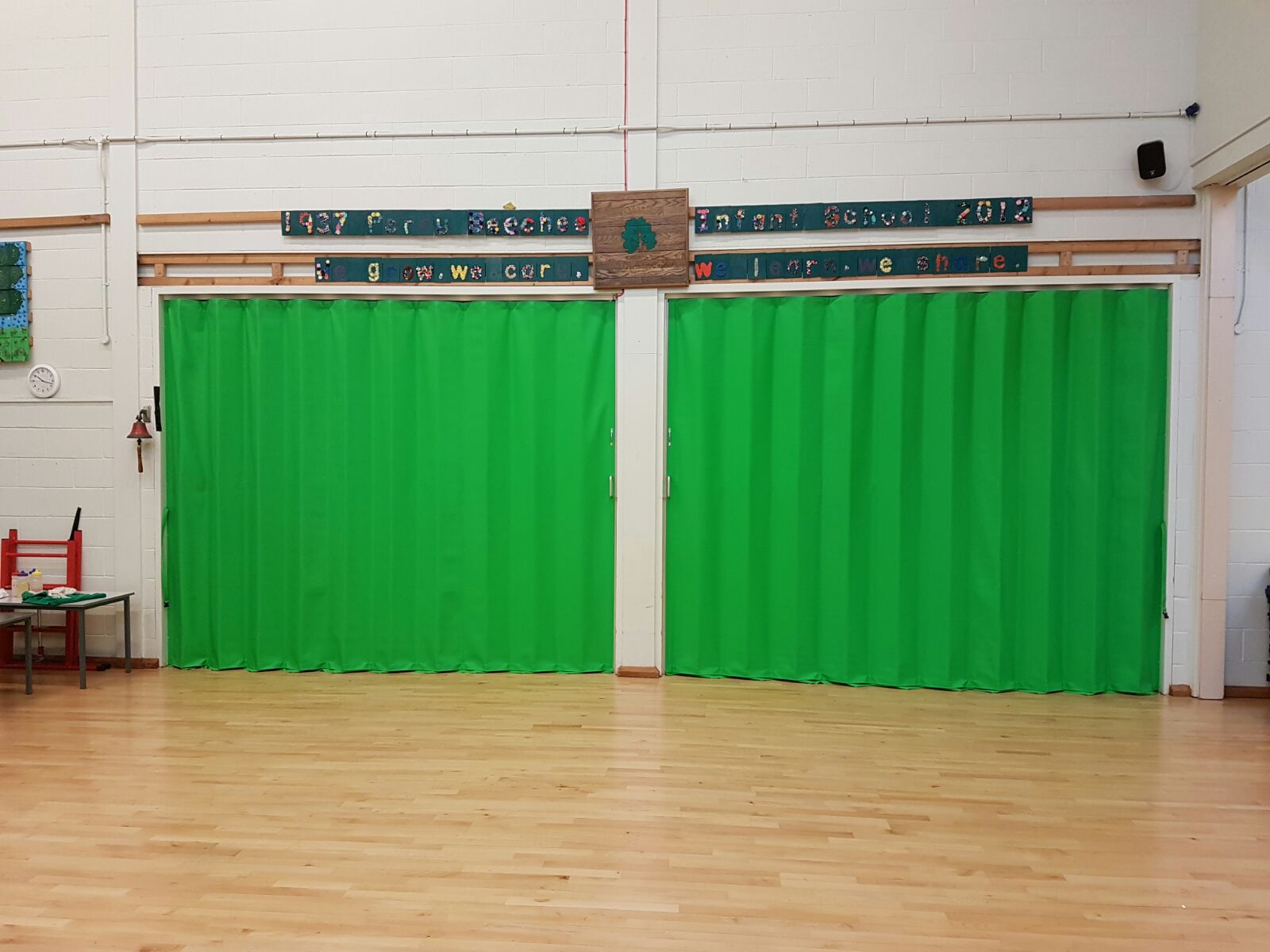

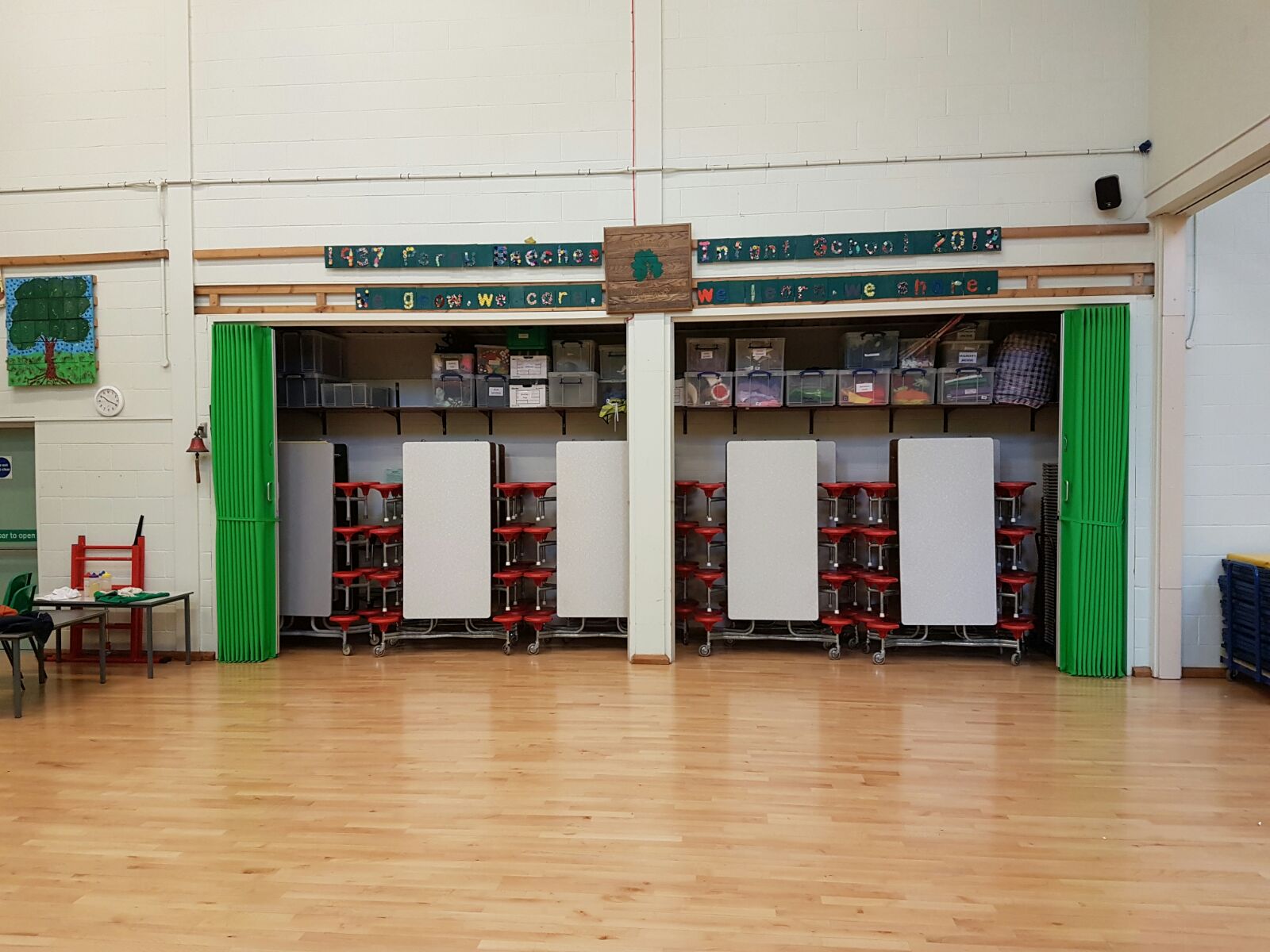

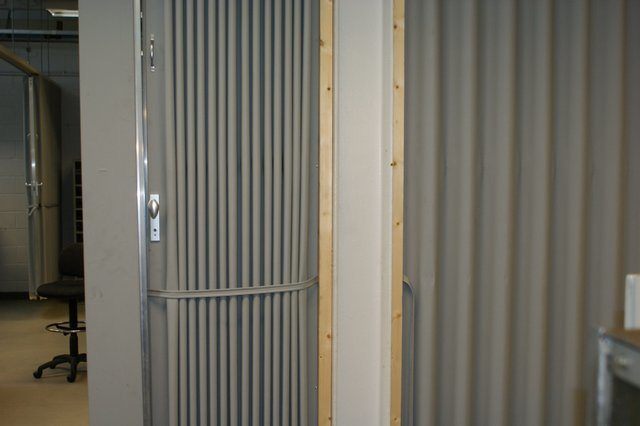

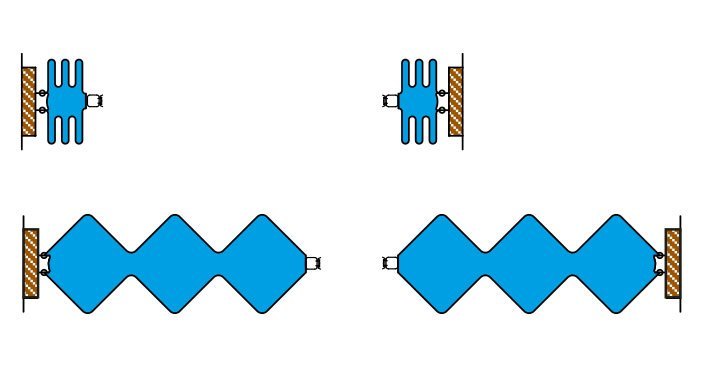

Alpha Bi-Parting

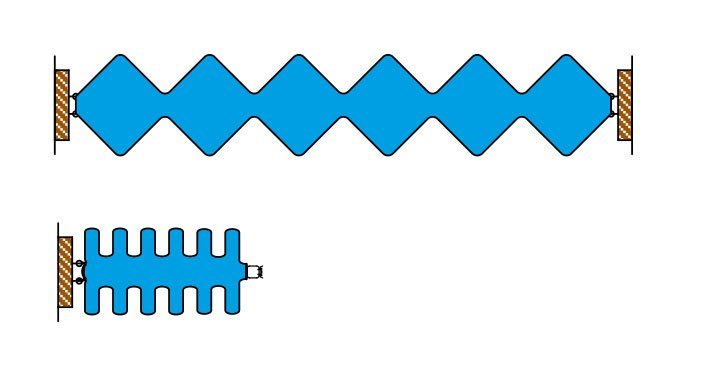

Alpha Single Wing

Suspension Options

There are 3 suspension options for the Alpha Range:

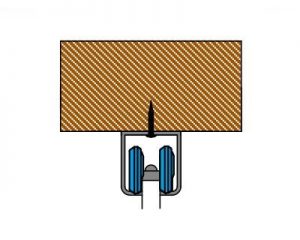

Exposed Head

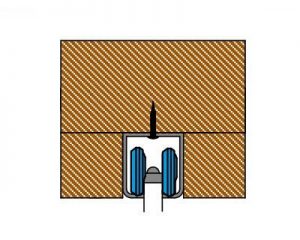

Concealed Head

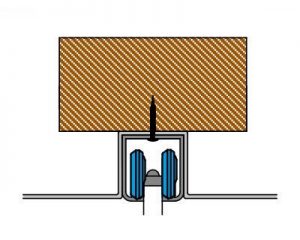

Ceiling Bulkhead

Downloads

Technical Drawings	PDF	DWG
Head Track Options
Wall Jamb
Stacking Detail
