Delta 115 Movable Glass Partition

Ideally suited for high specification applications due to the sheer flexibility and numerous stacking arrangements.

Introduction

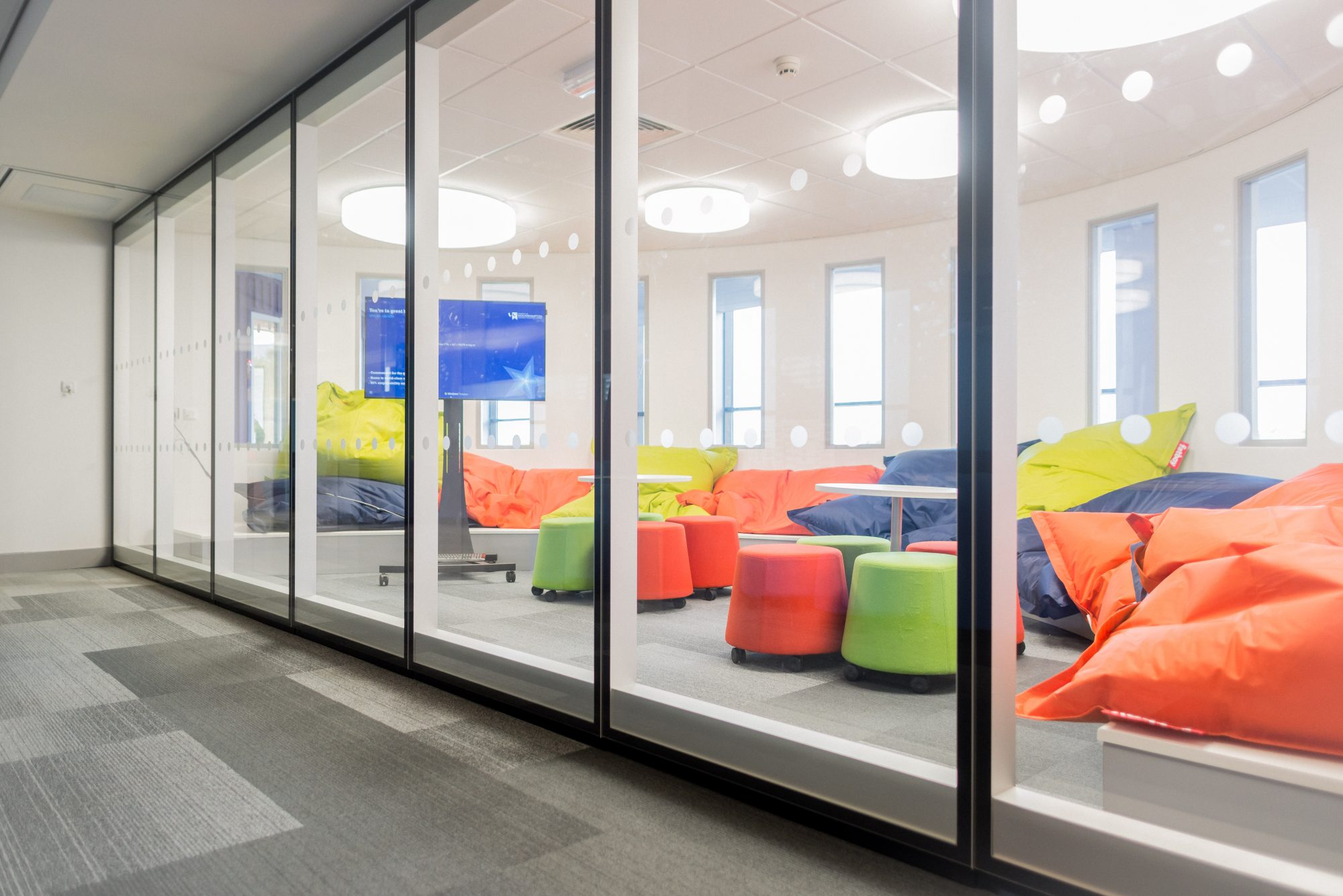

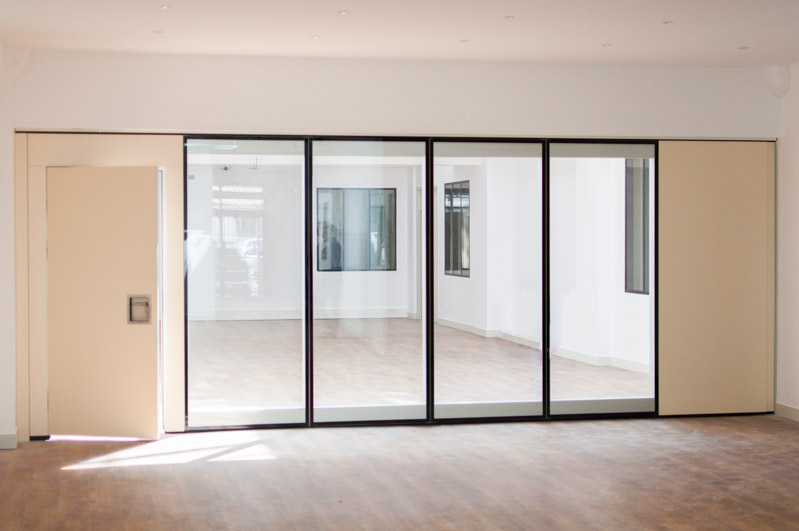

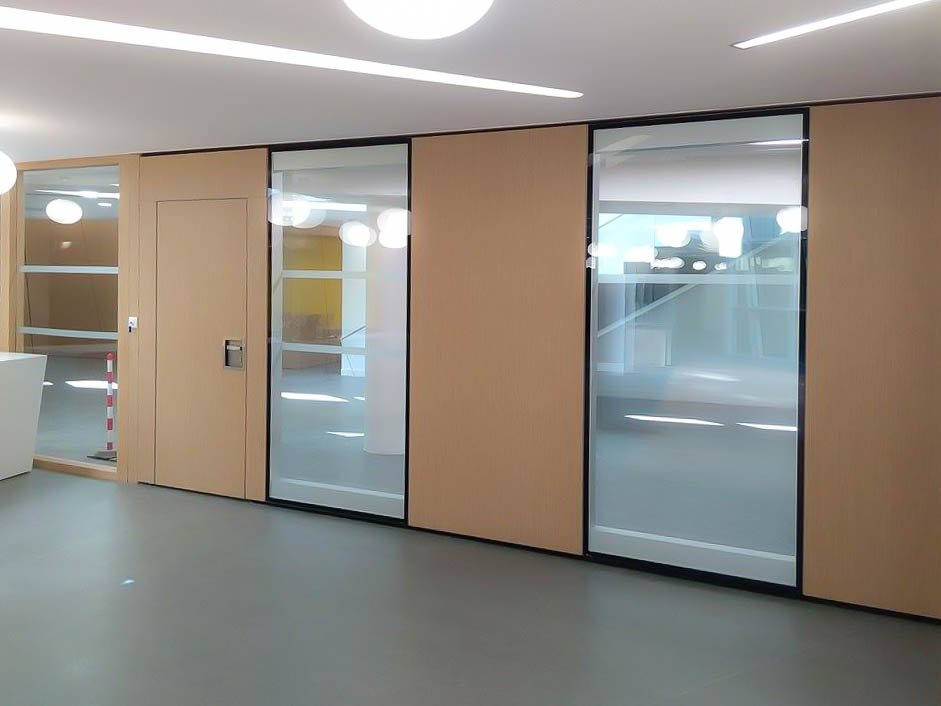

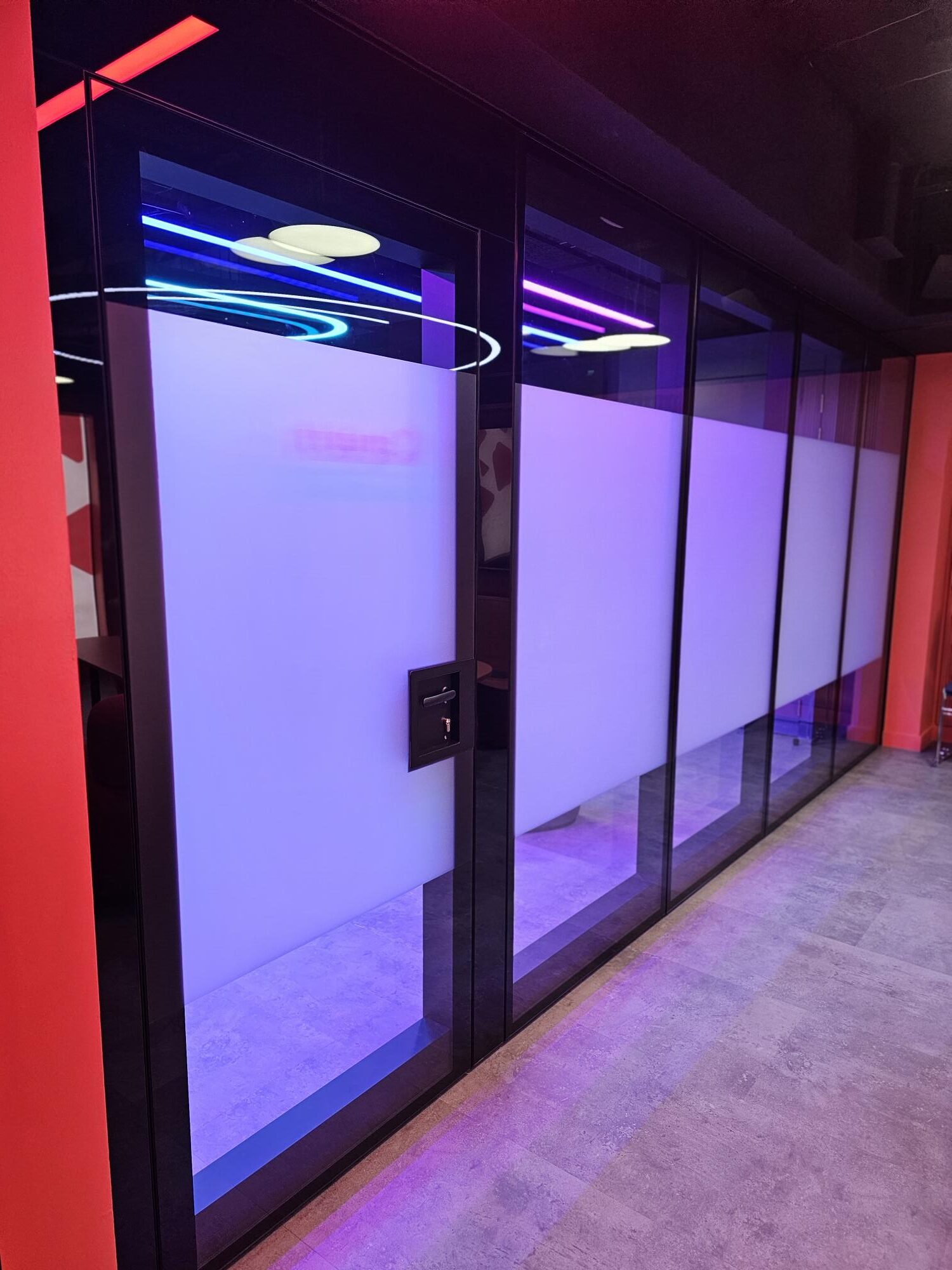

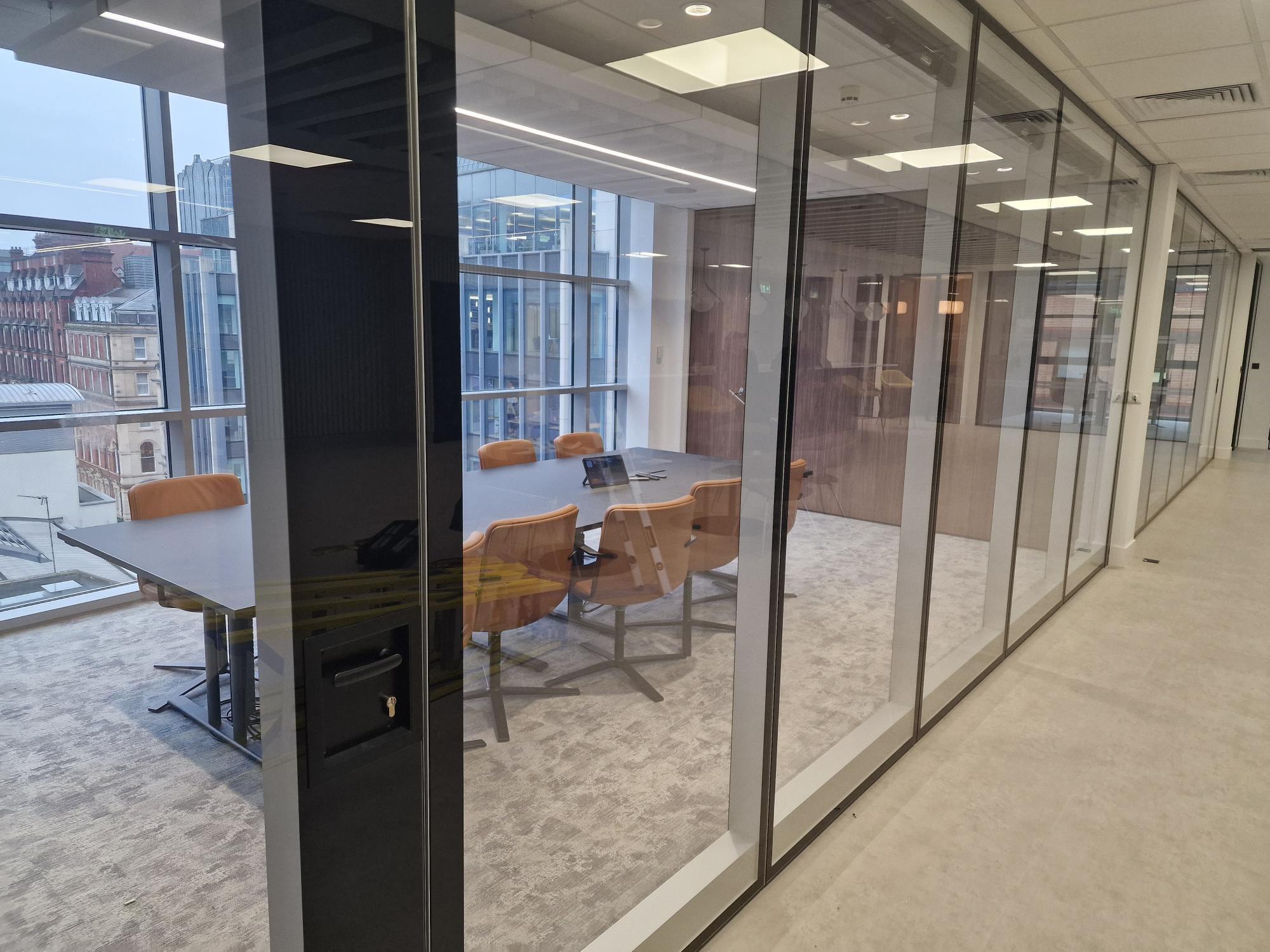

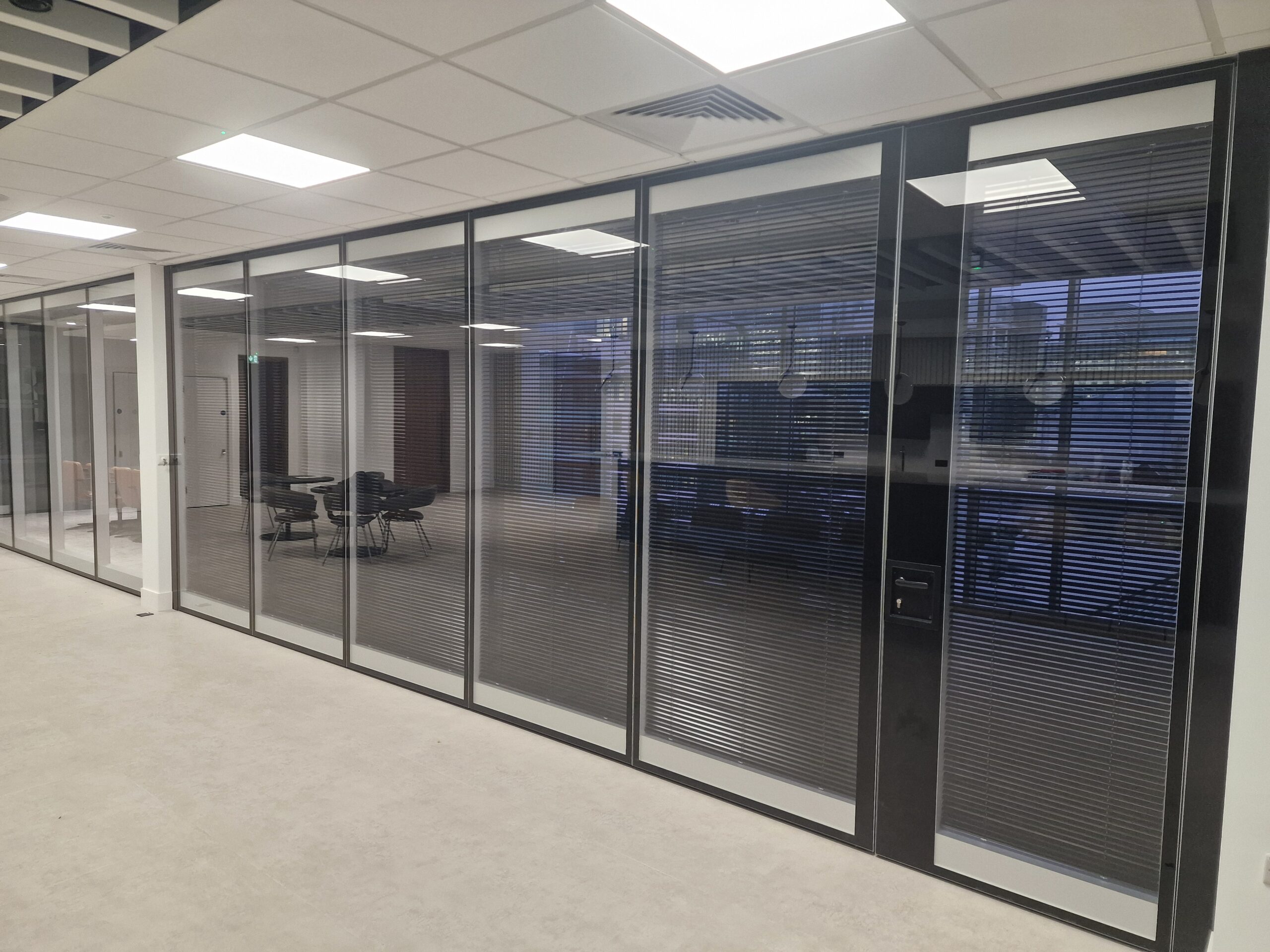

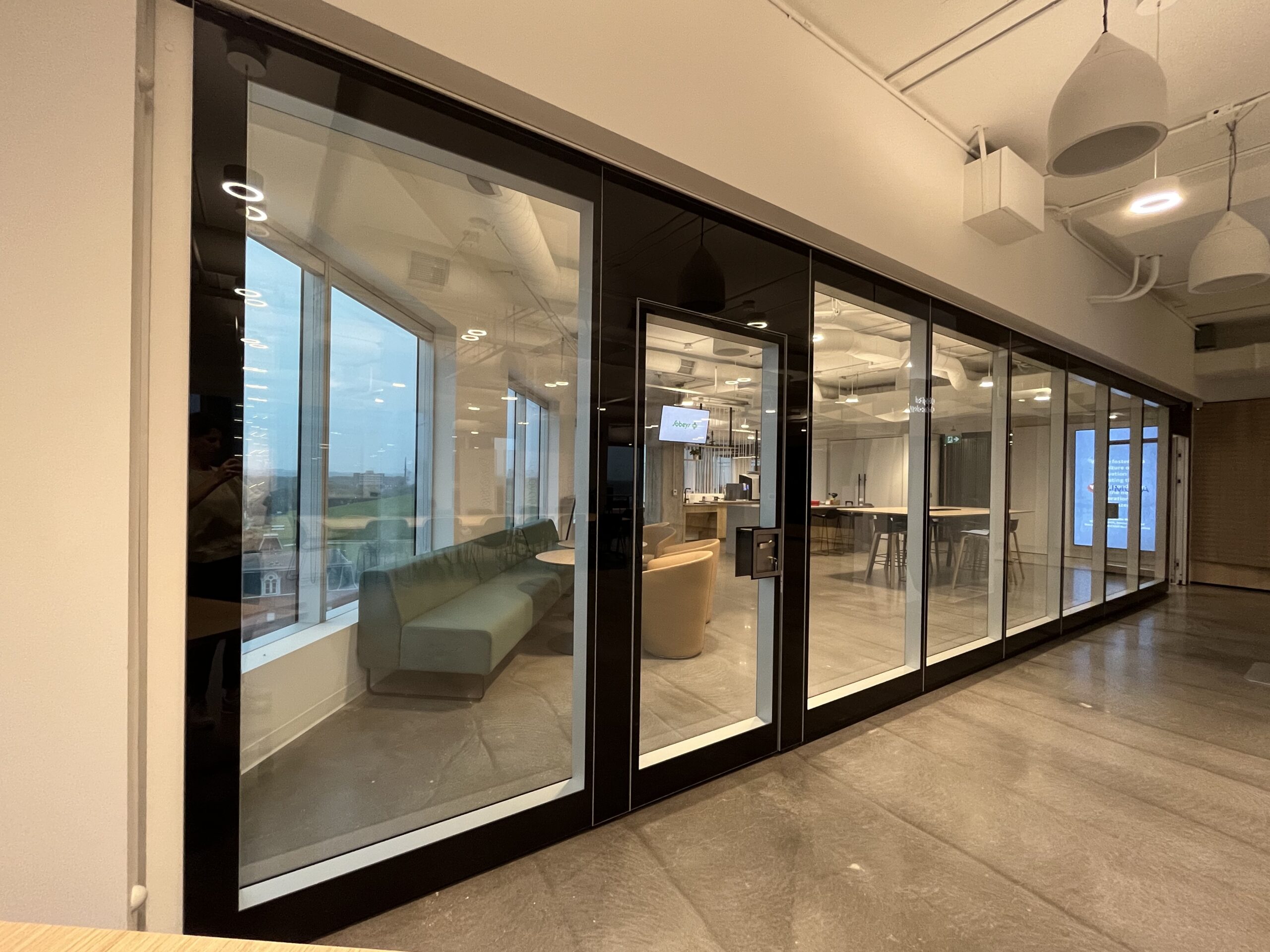

The Delta 115 Range is a fully glazed partition offering acoustic ratings up to 54dB.

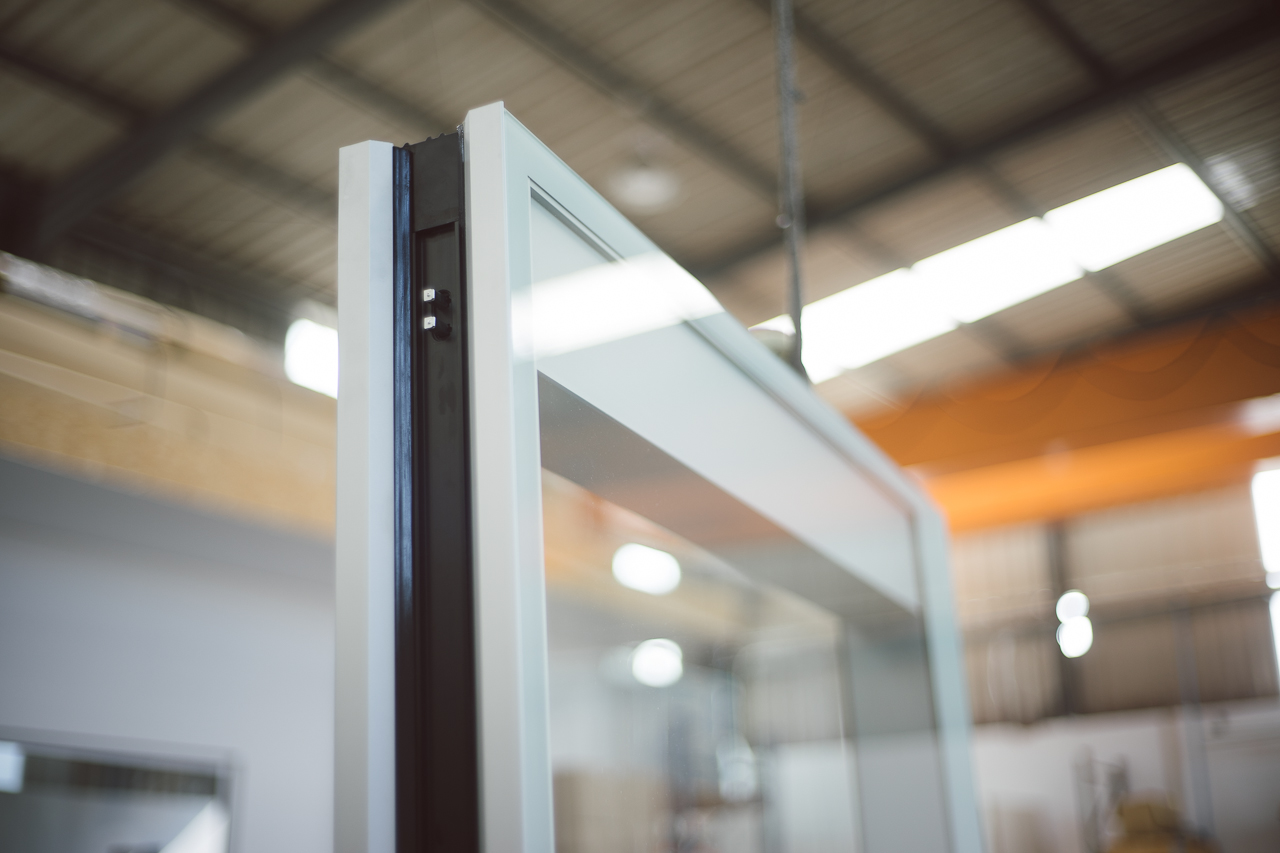

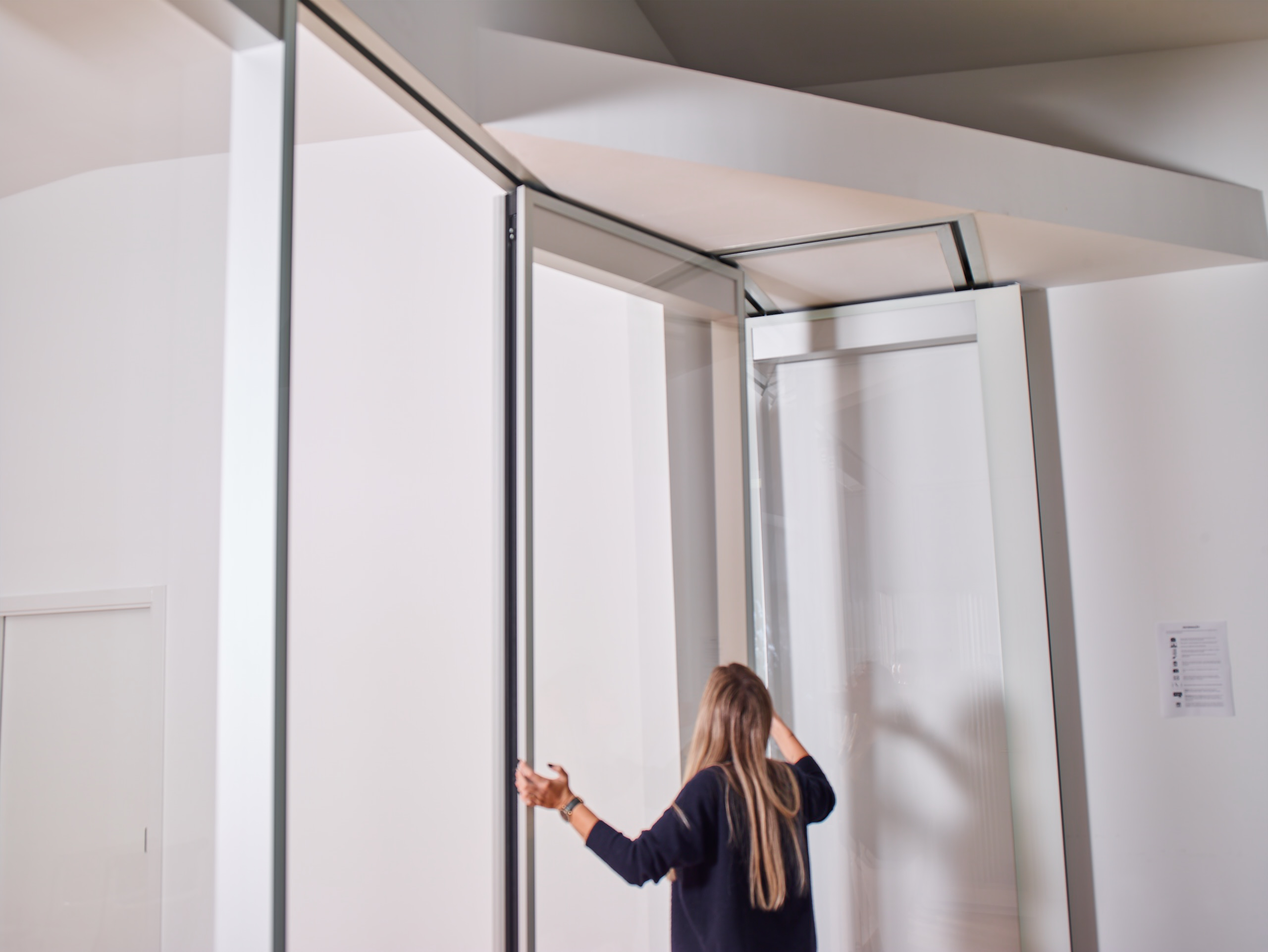

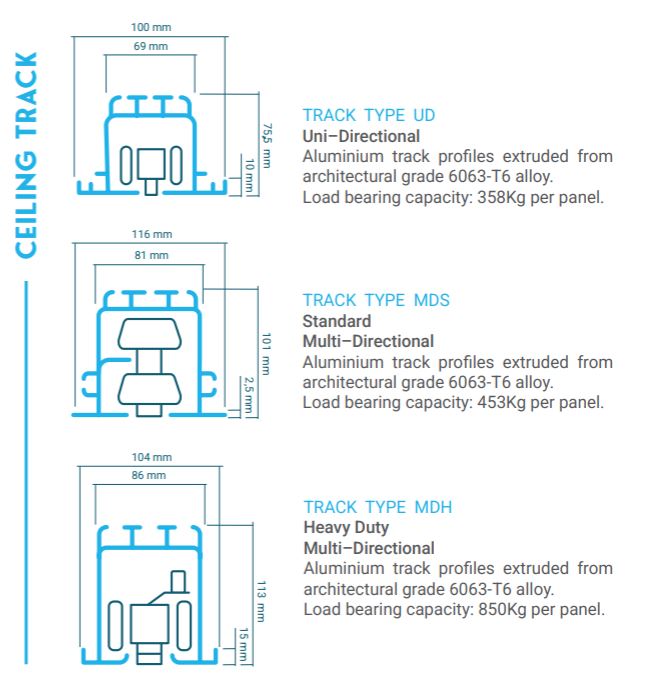

Panel seals are operated semi automatically and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.

Technical Specs

Acoustic rating from 44-54dB
Applications up to 3600mm high
Single / Twin Point Suspension
840mm – 1300mm Panel Widths
Ideal for conference centres, hotels, offices & schools

Panels with hinged pass door, single or double leaf inset pass door panels for access through
Nominal panel thickness 115mm
Full maintenance contracts available

Finishing Options

Our wall systems are available in a wide array of surface finishes to suit the design of its surroundings. Plus! Add bespoke surface decals.

Uni Colours

Stacking Options

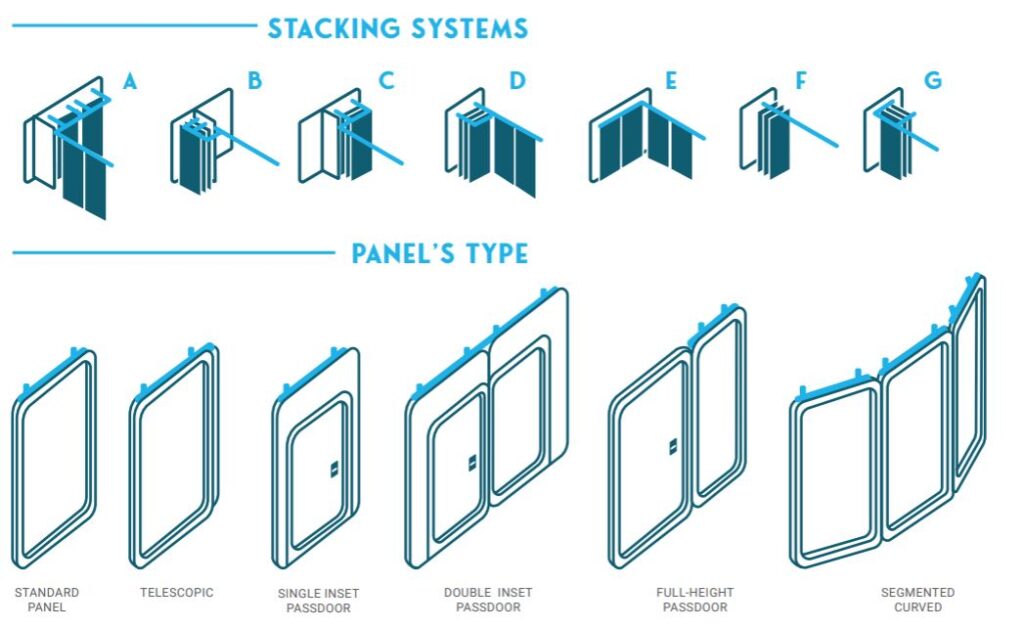

There are 6 common stacking options for the Omega Range movable wall system as shown below:

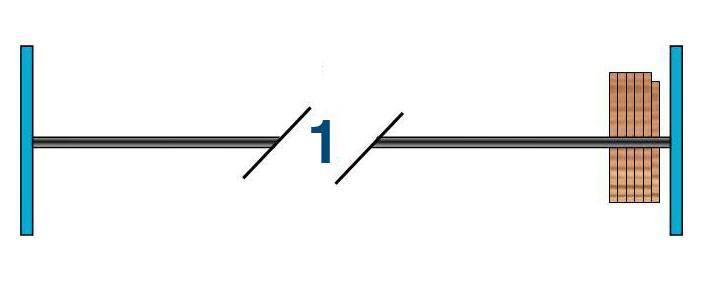

Single Point Central Track

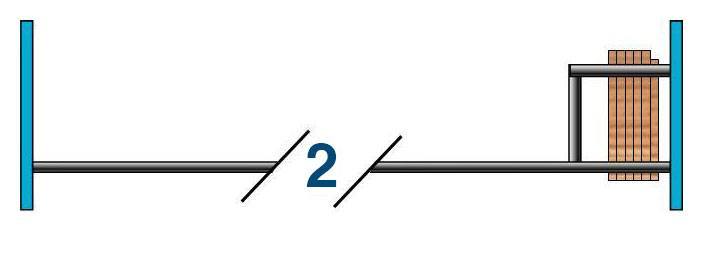

Double Point Track

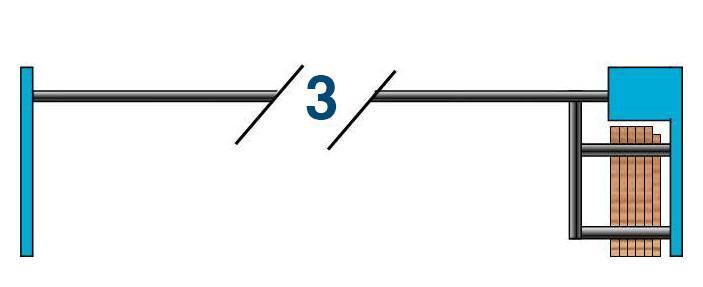

Double Point Offset Track

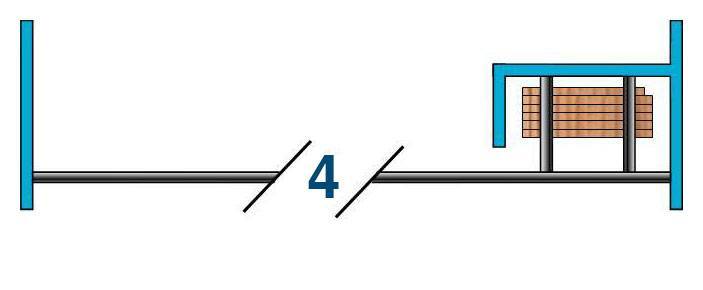

Double Point Parallel Stack

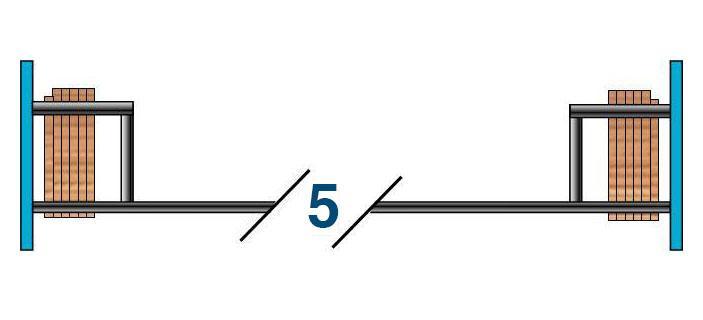

Double Point – Bi-Parting Offset Stack

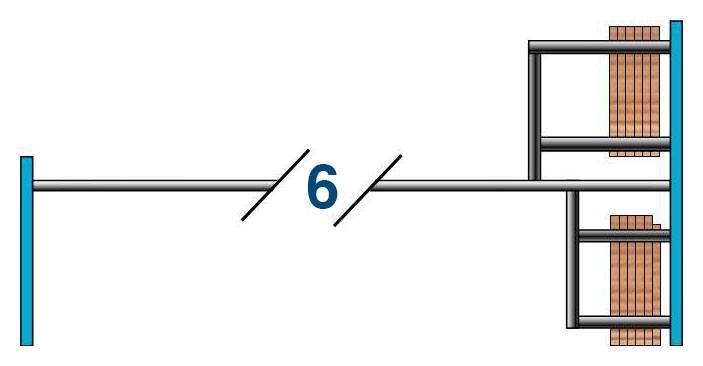

Double Point – Double Offset Stack

Suspension Options

There are 2 suspension options for the Delta Range:

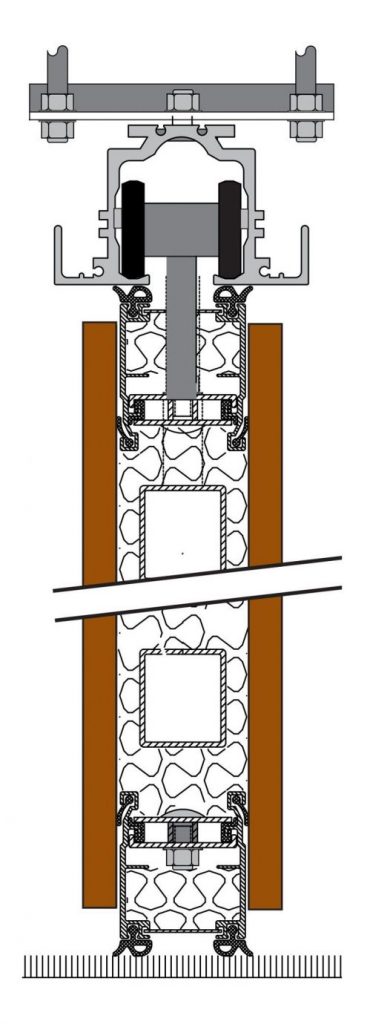

Single Point

Double Point
