Omega Acoustic Movable Wall

Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements and the systems impressive acoustic qualities.

Introduction

The Omega Range is our individual panel partition system offering an acoustic insulation rating of up to 59dB.

Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.

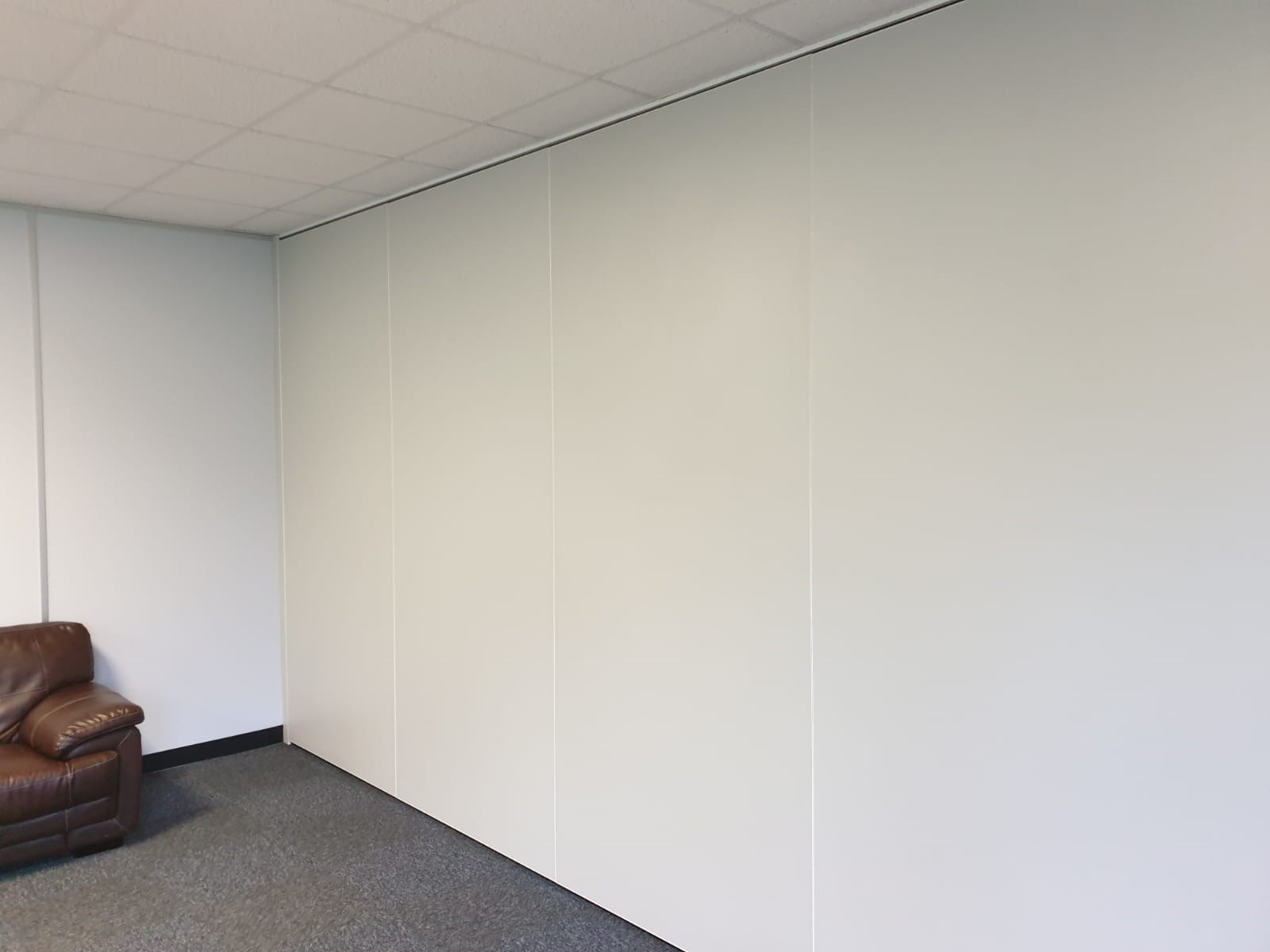

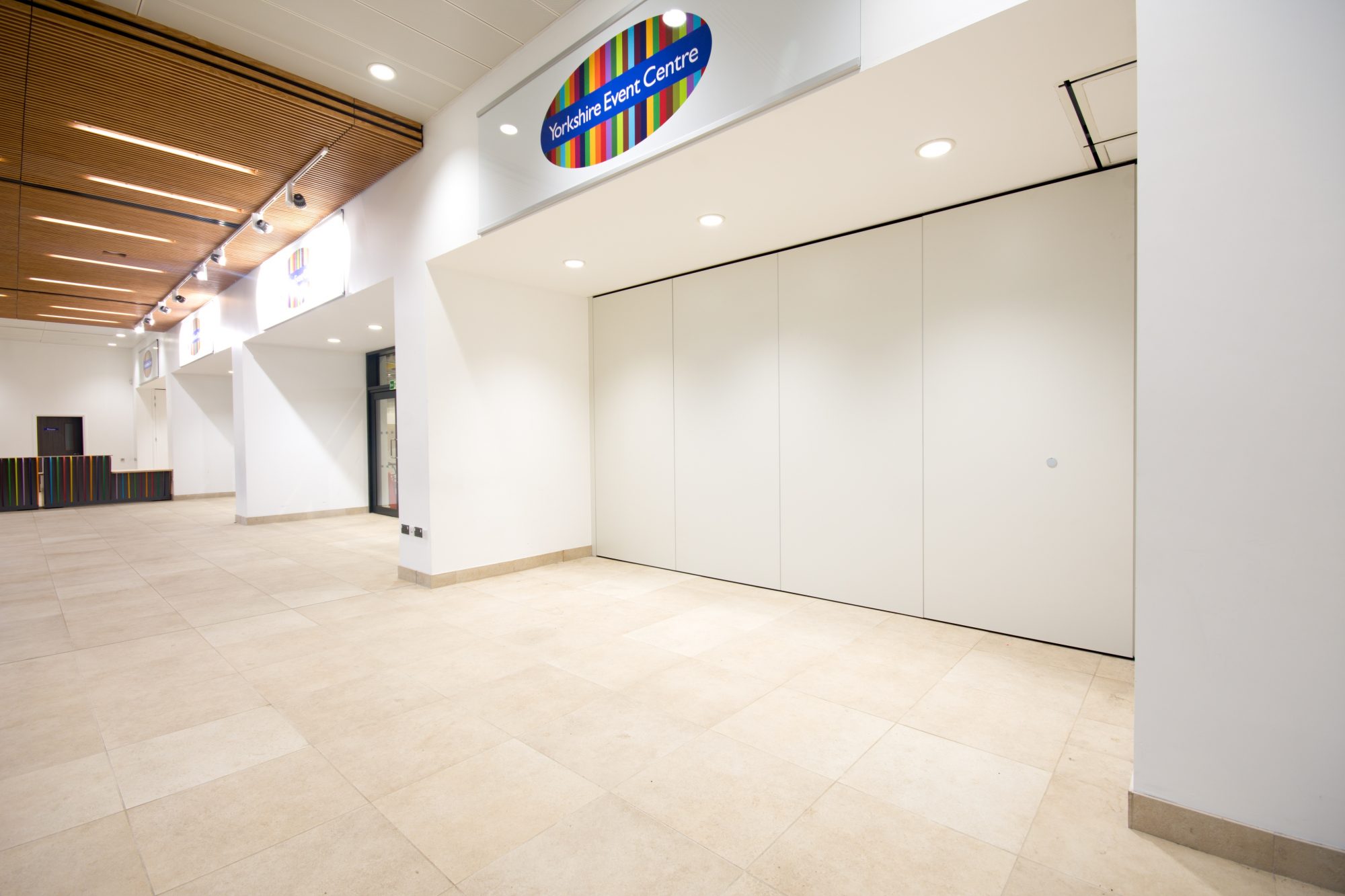

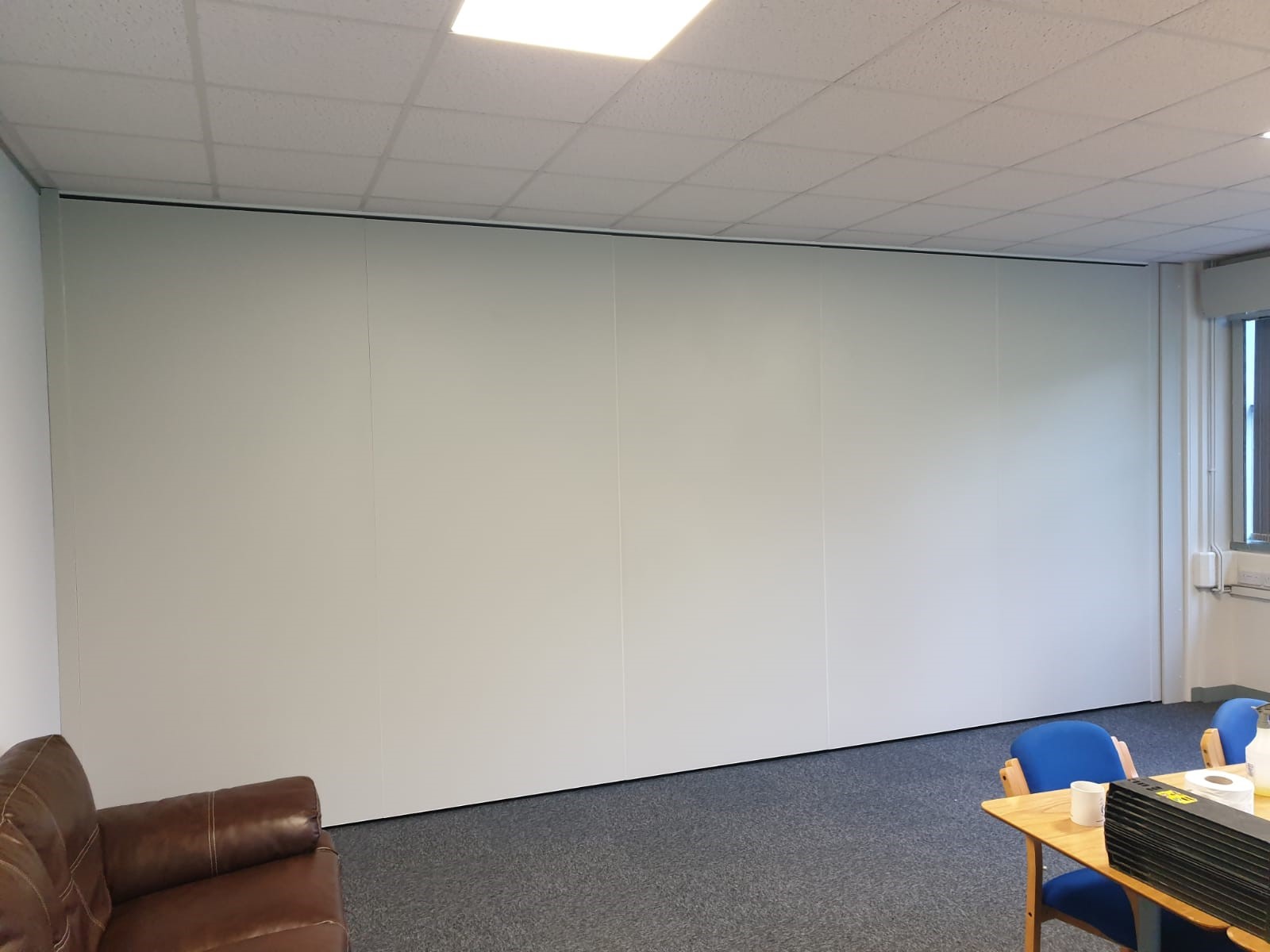

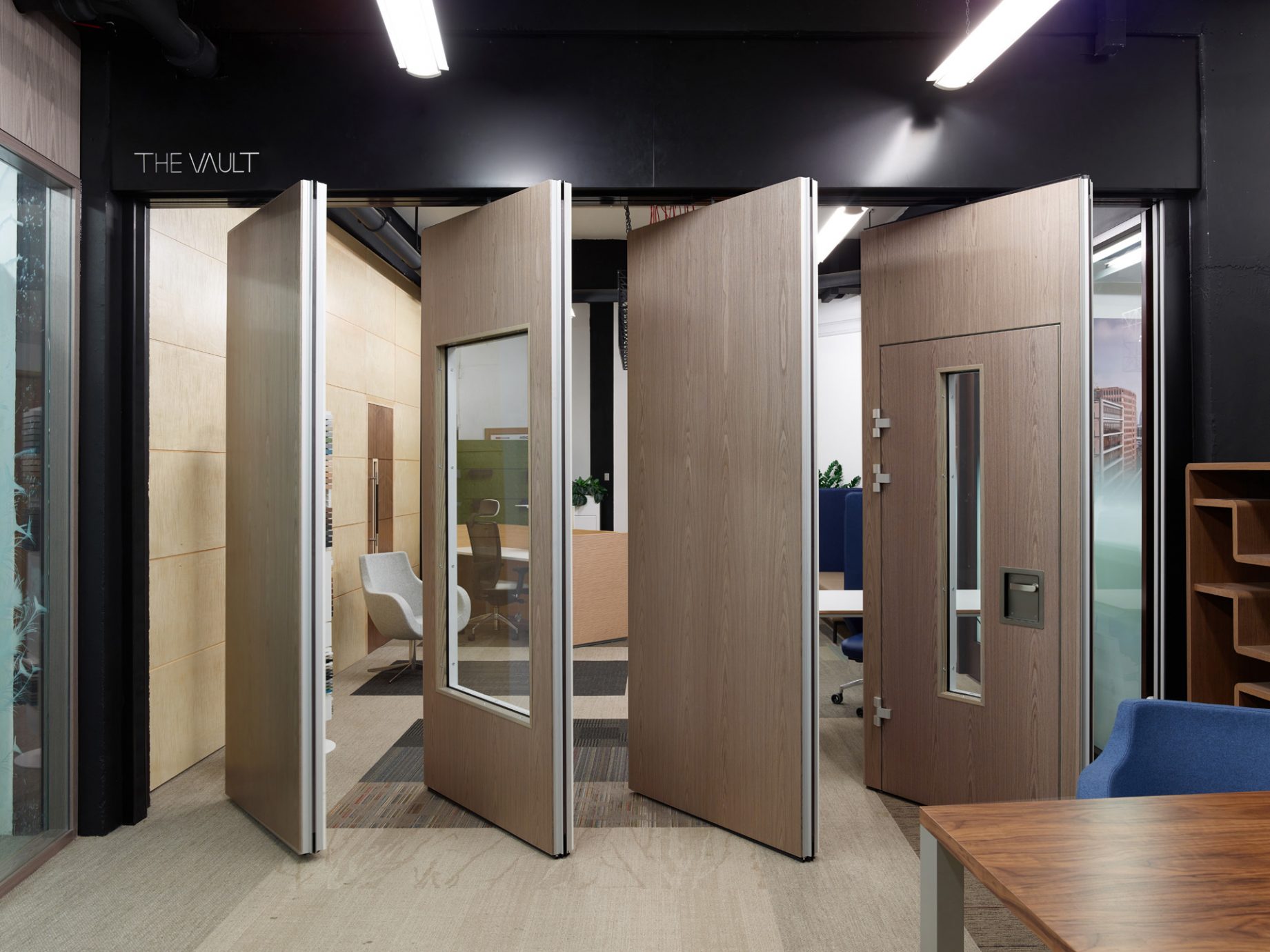

The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.

Technical Specs

Acoustic rating from 39-59dB laboratory tested to ISO 140 Part 3

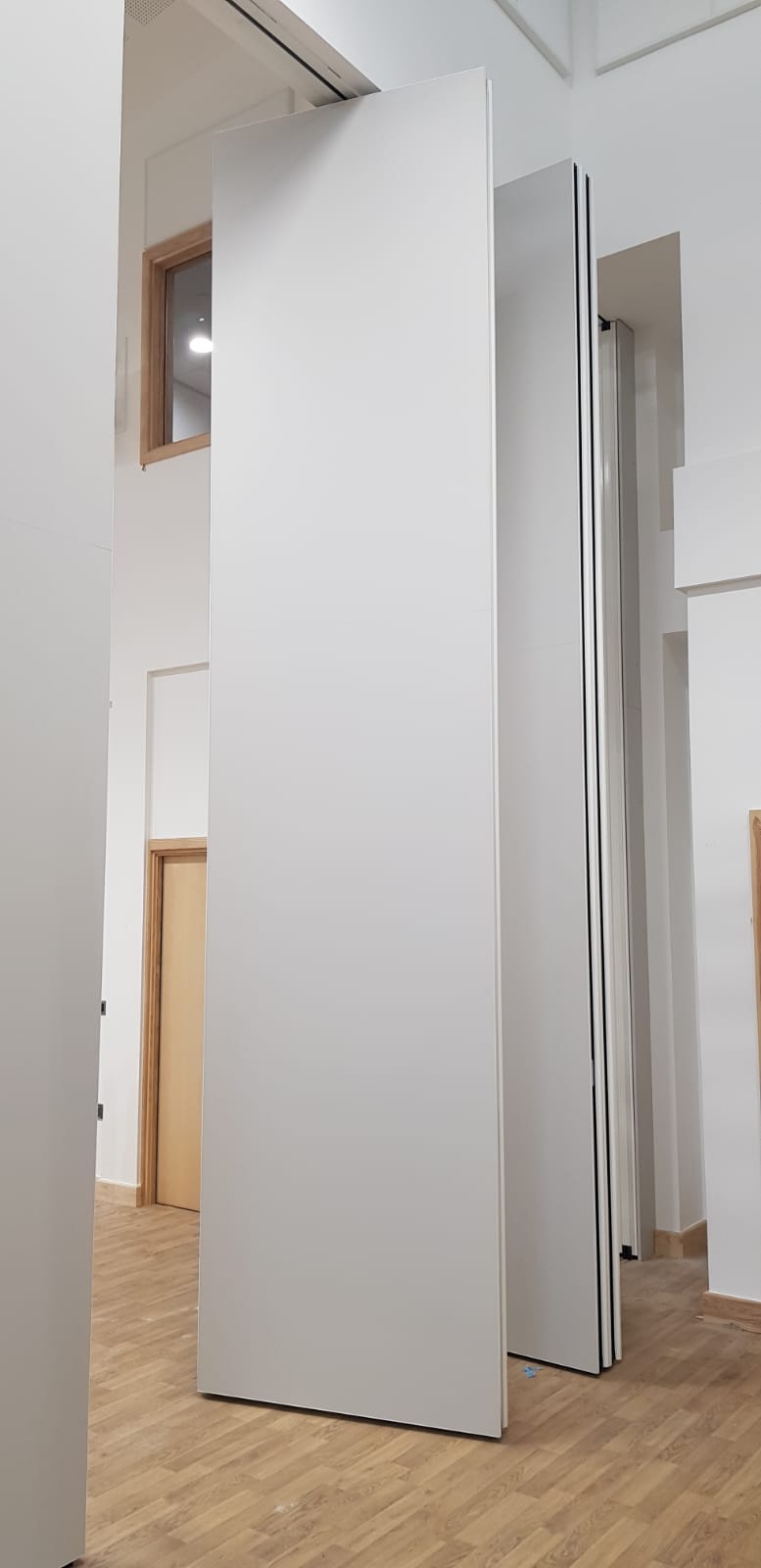

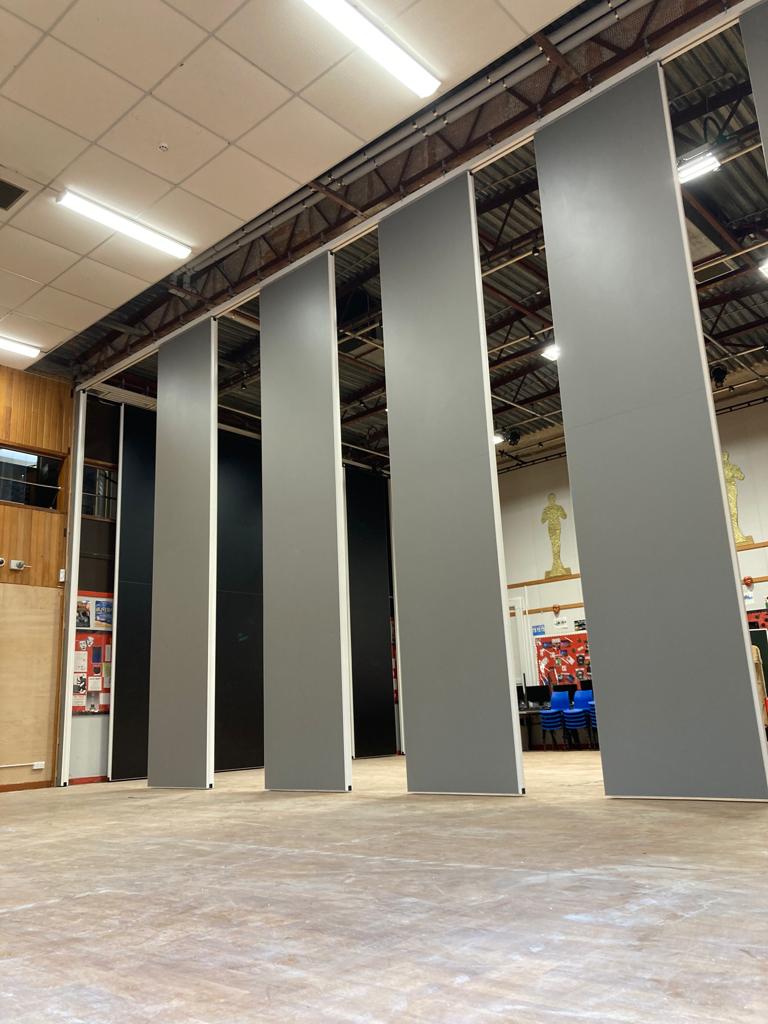

Applications up to 10,000mm high
Top hung with no floor track
Scissor-jack operating mechanism

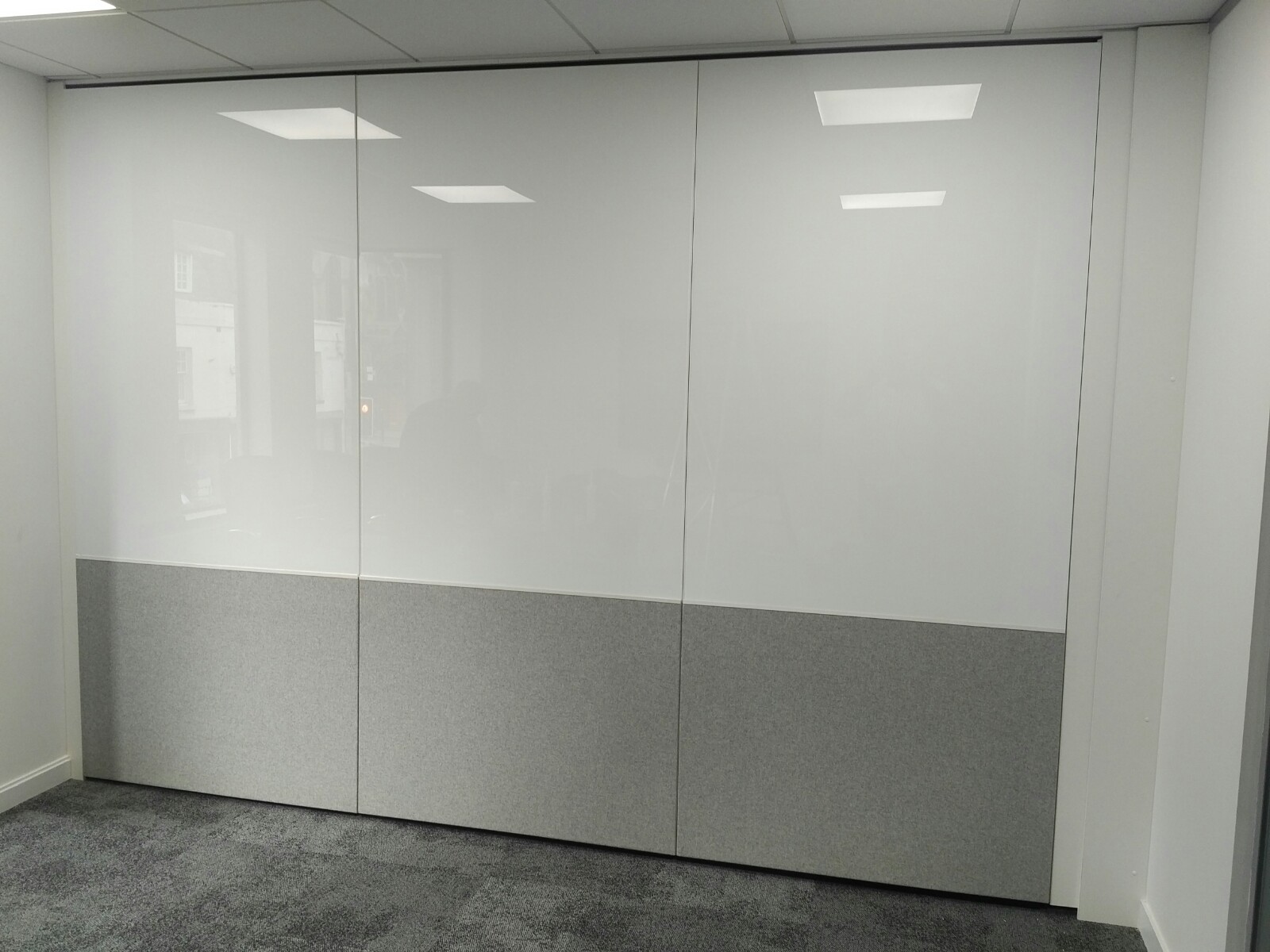

Available with virtually any surface finish
Ideal for conference centres, hotels, offices & schools

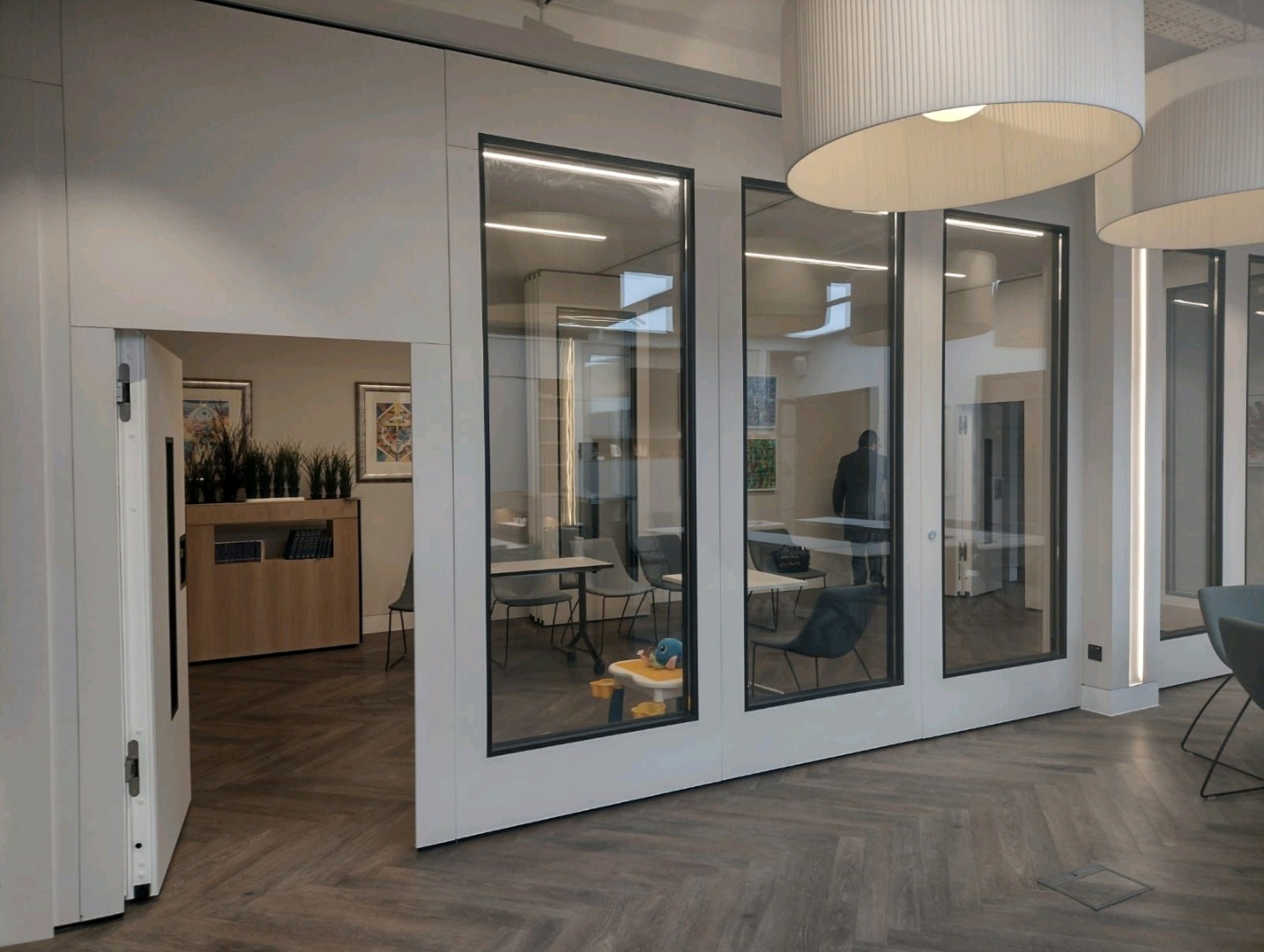

Angled, glazed, corner or junction panels for maximum flexibility

Single or double point suspension for versatile stacking options

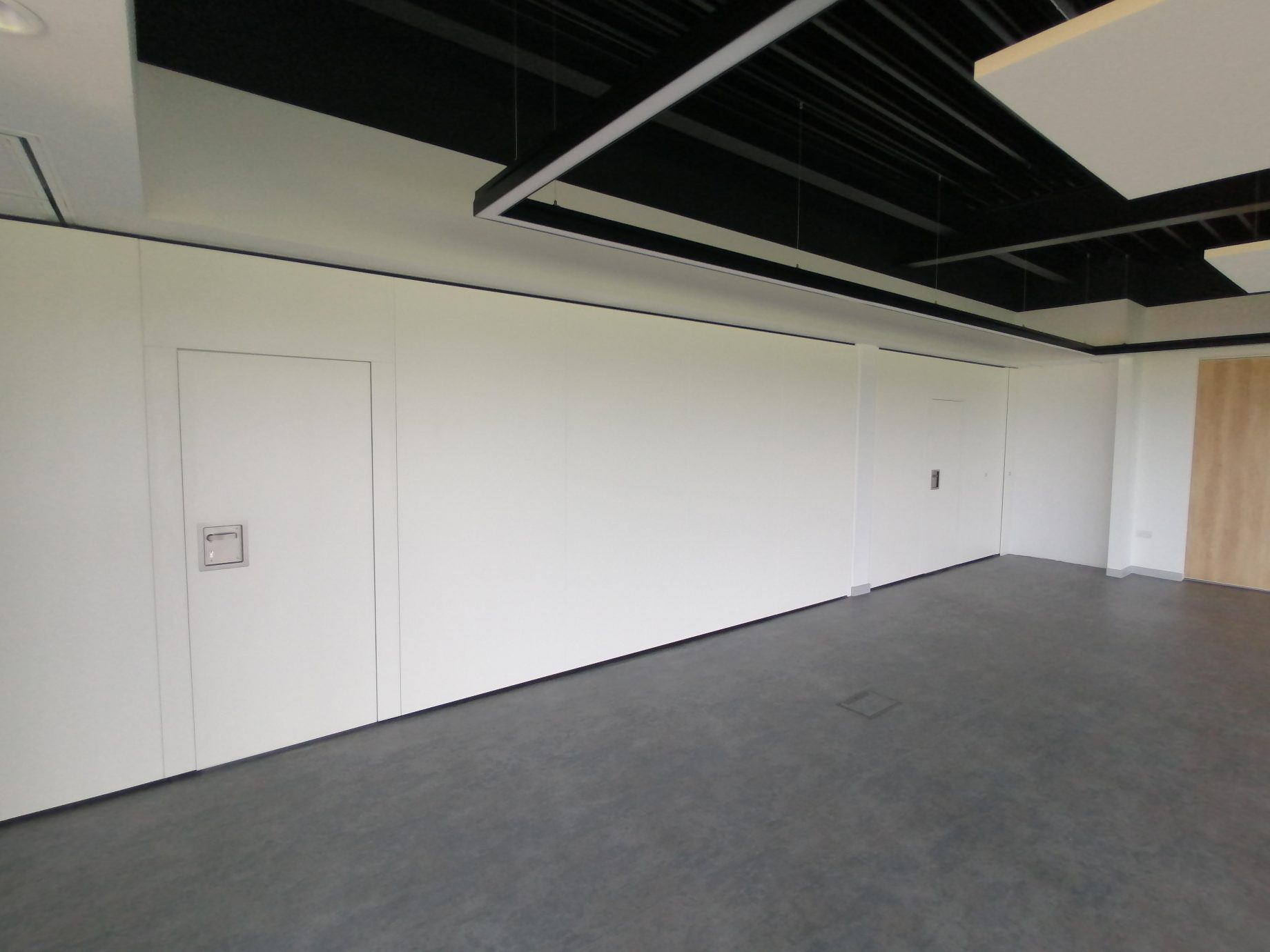

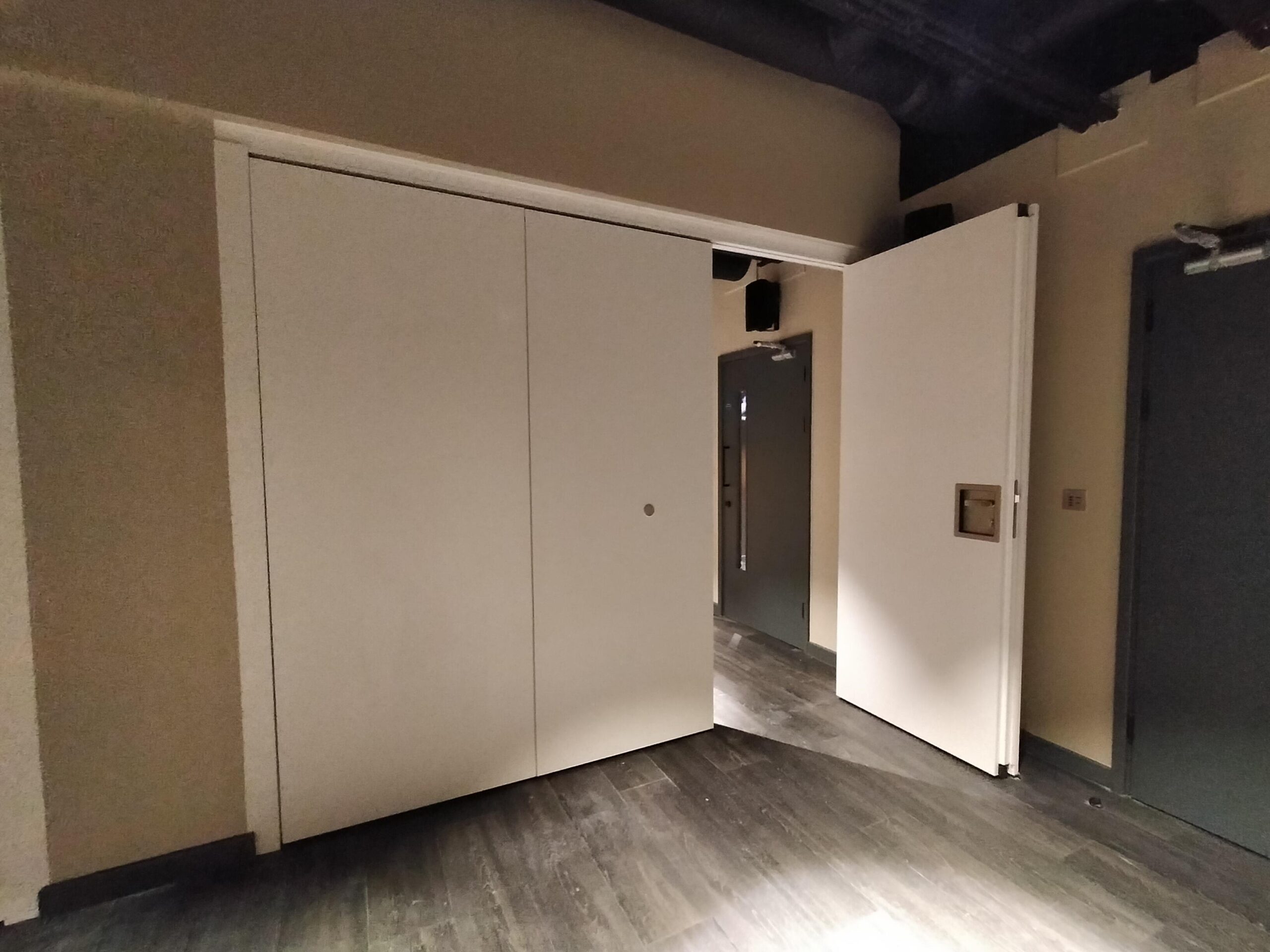

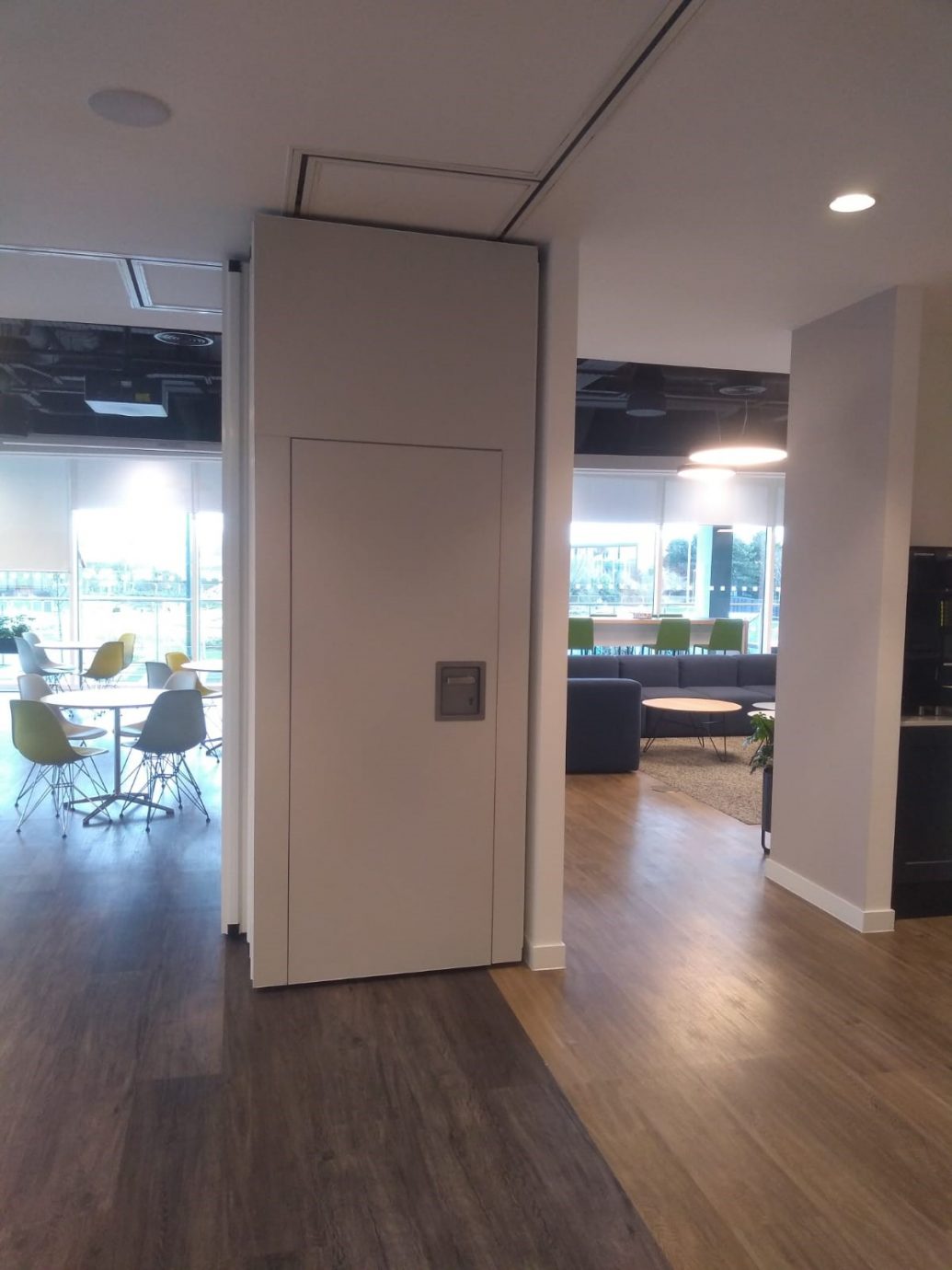

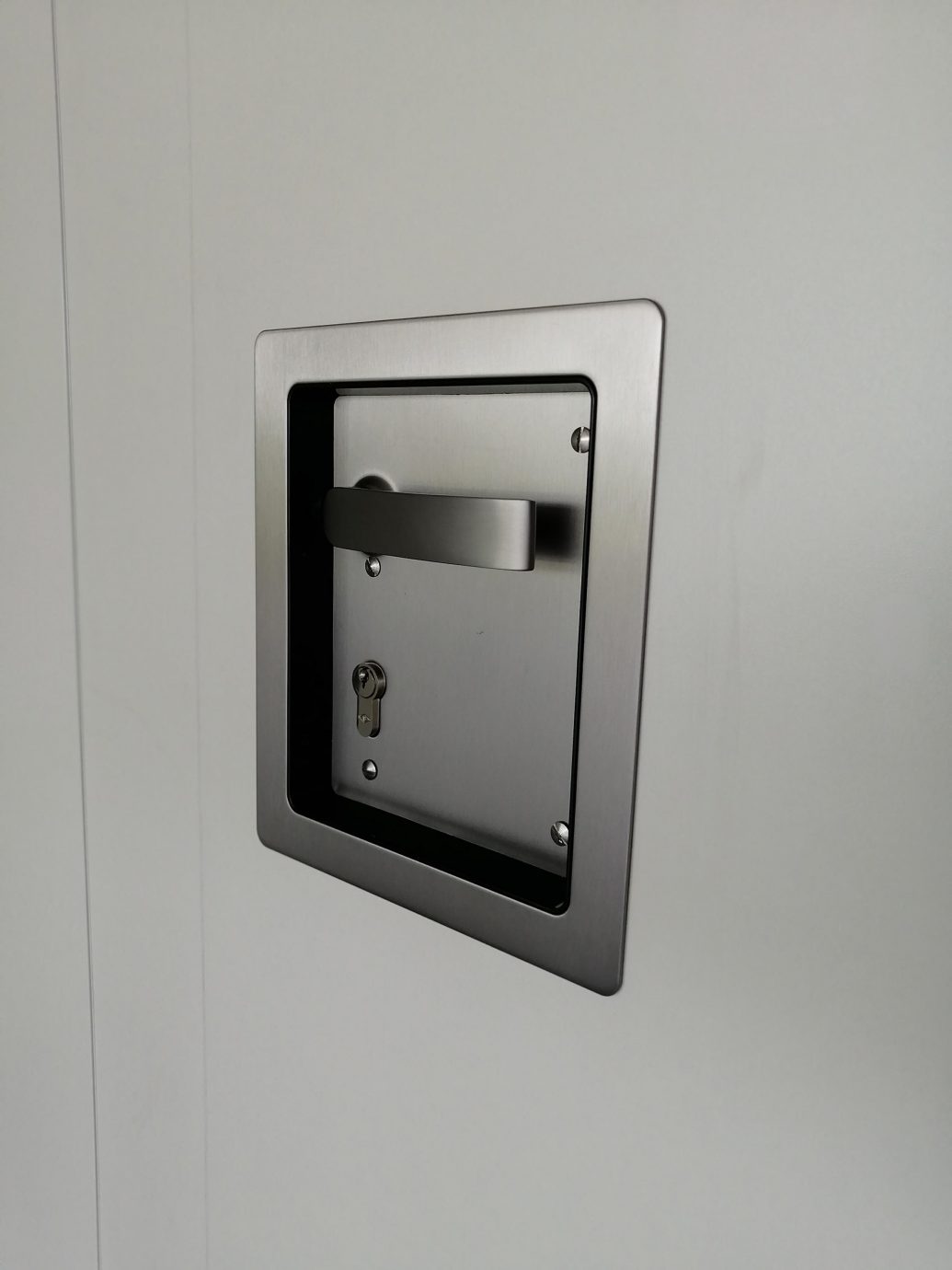

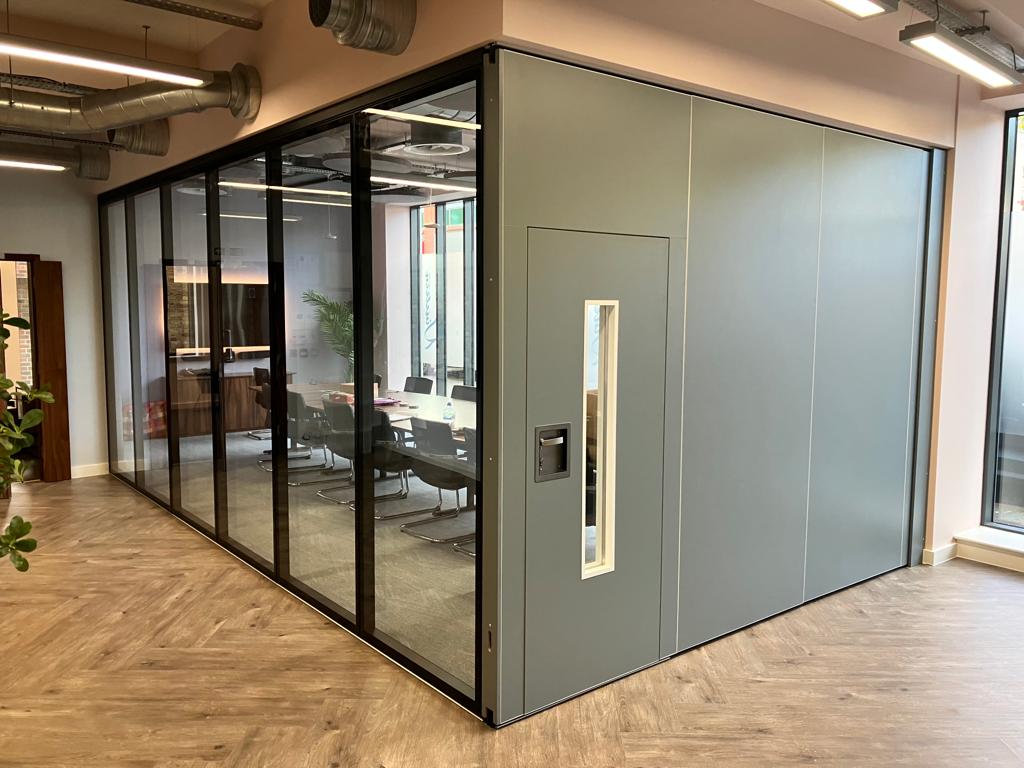

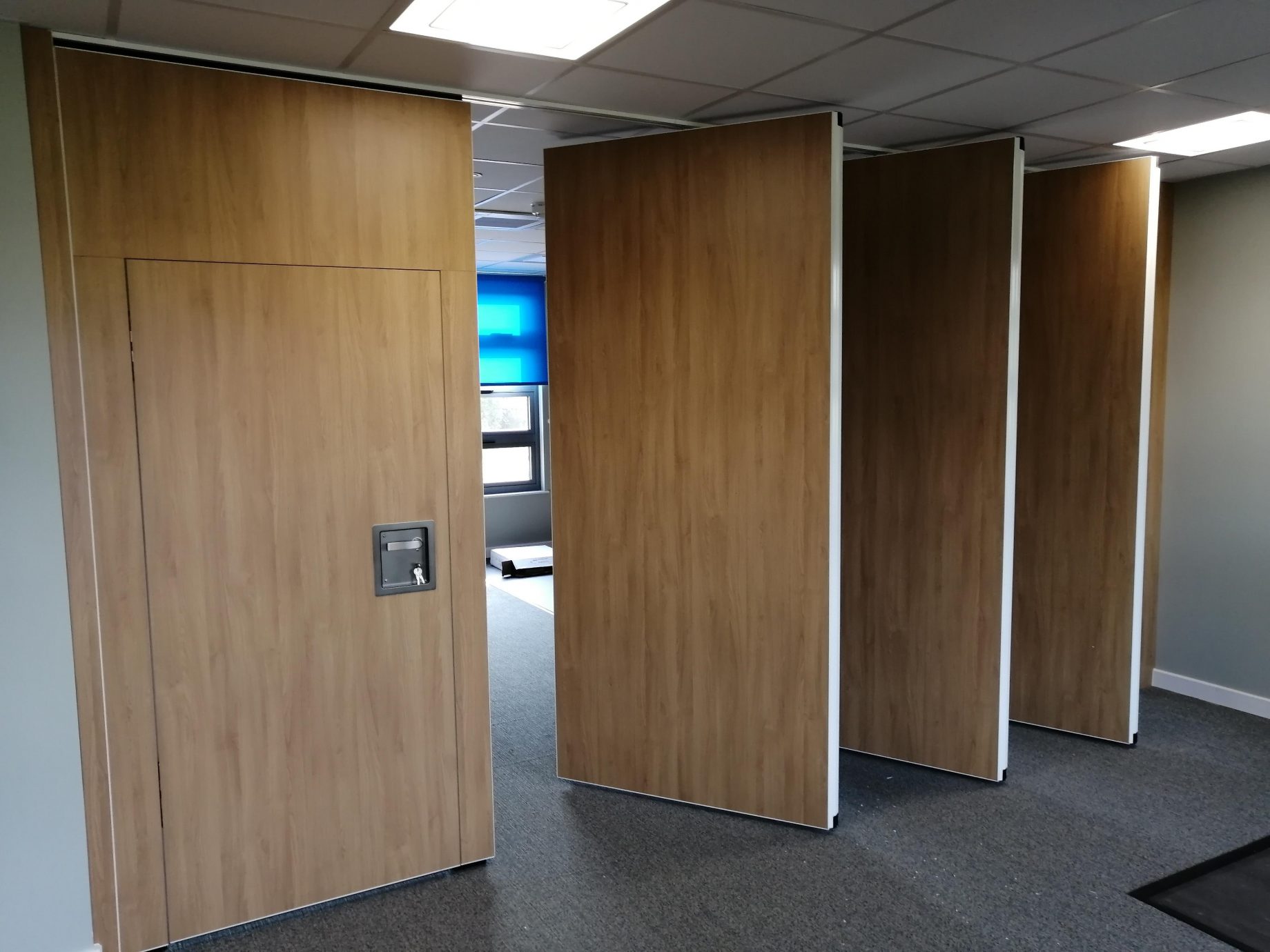

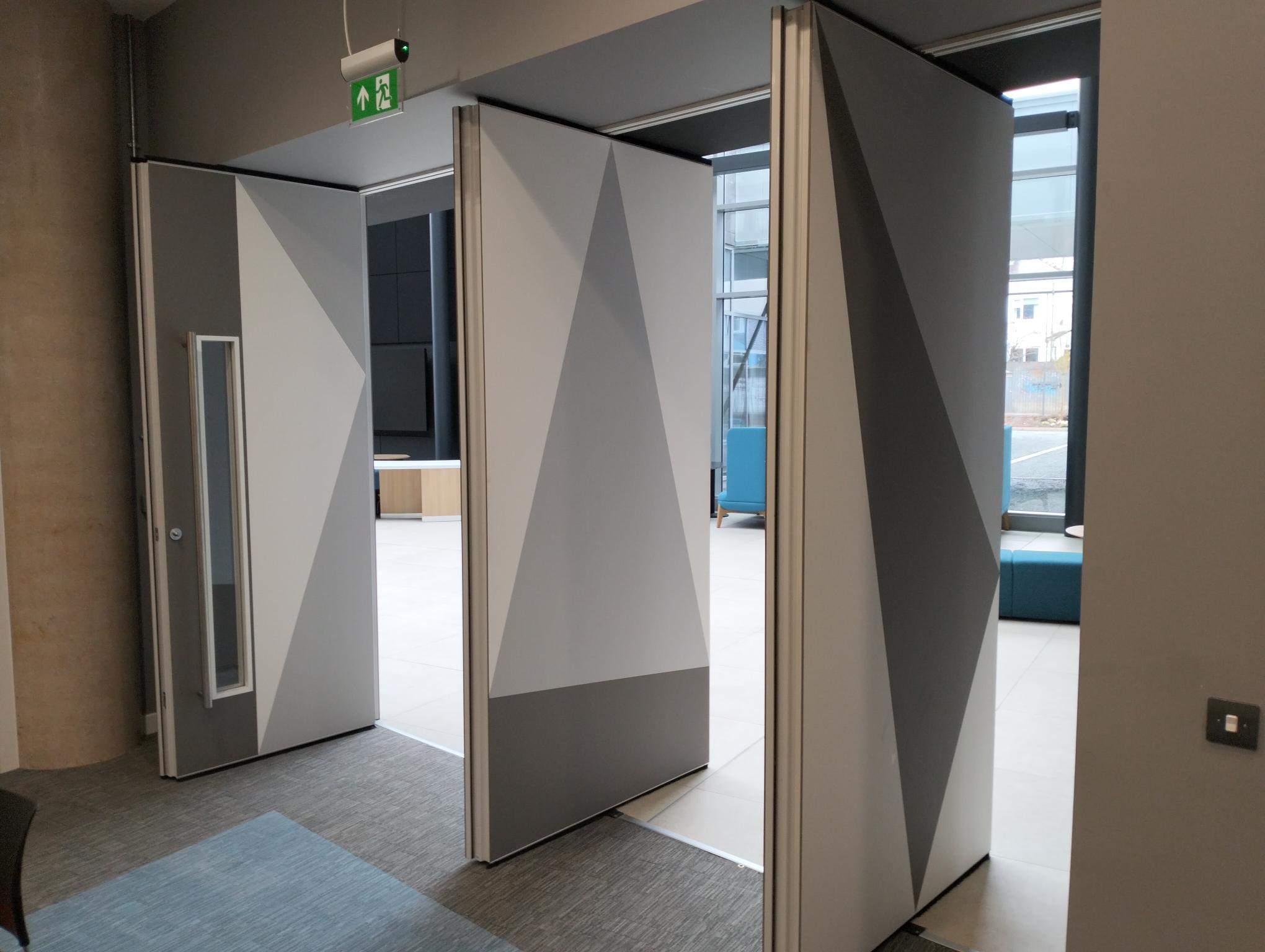

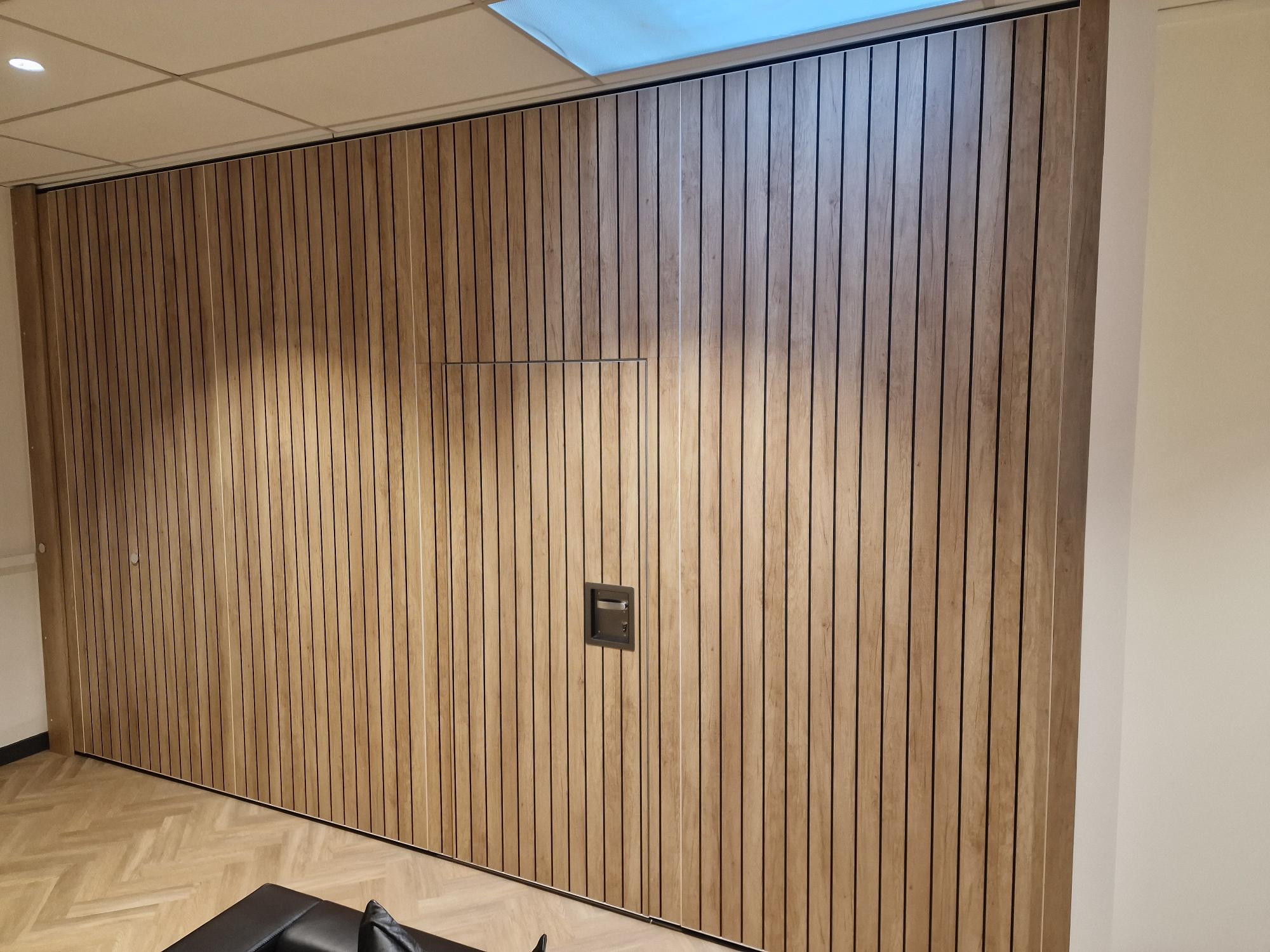

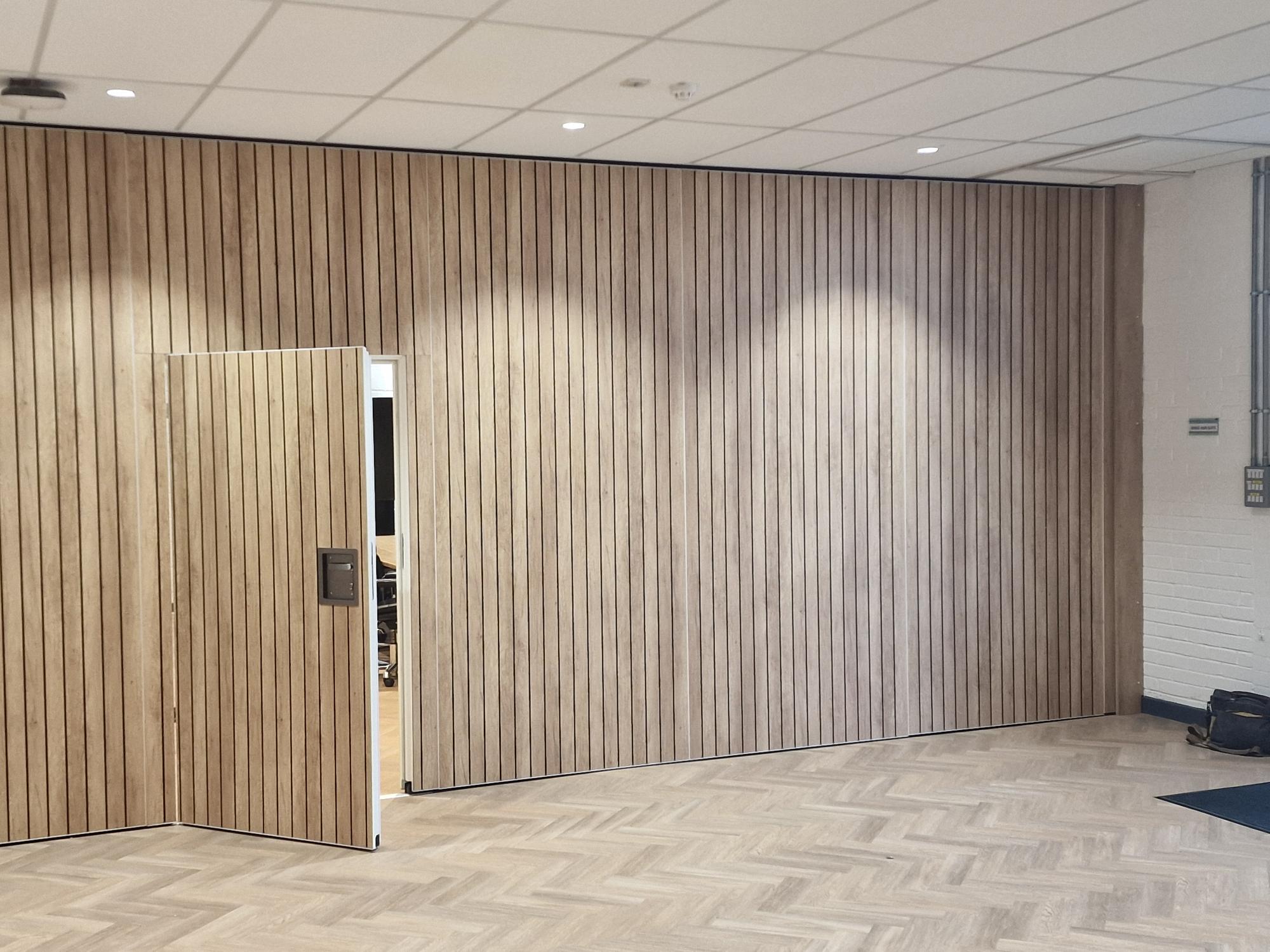

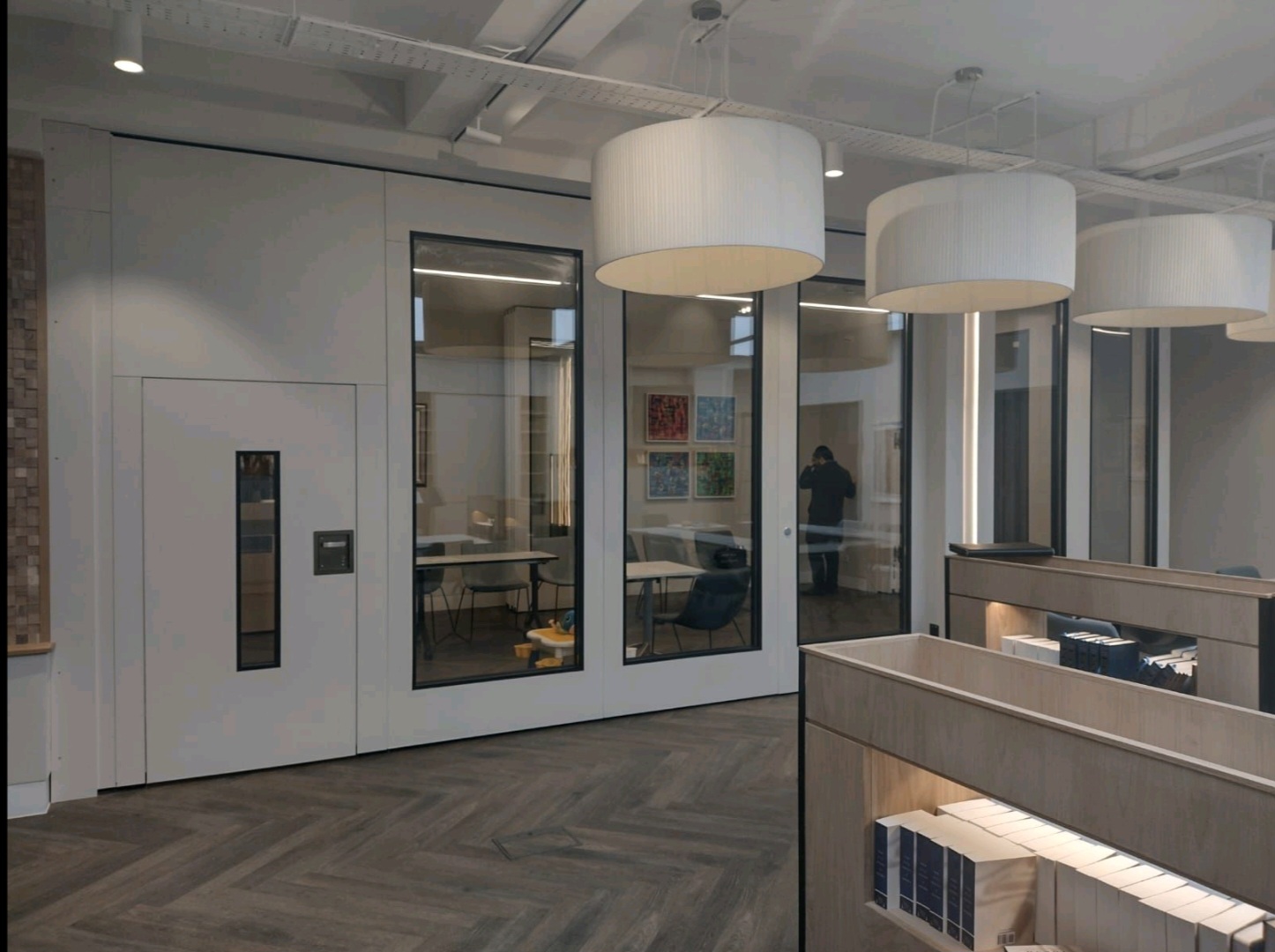

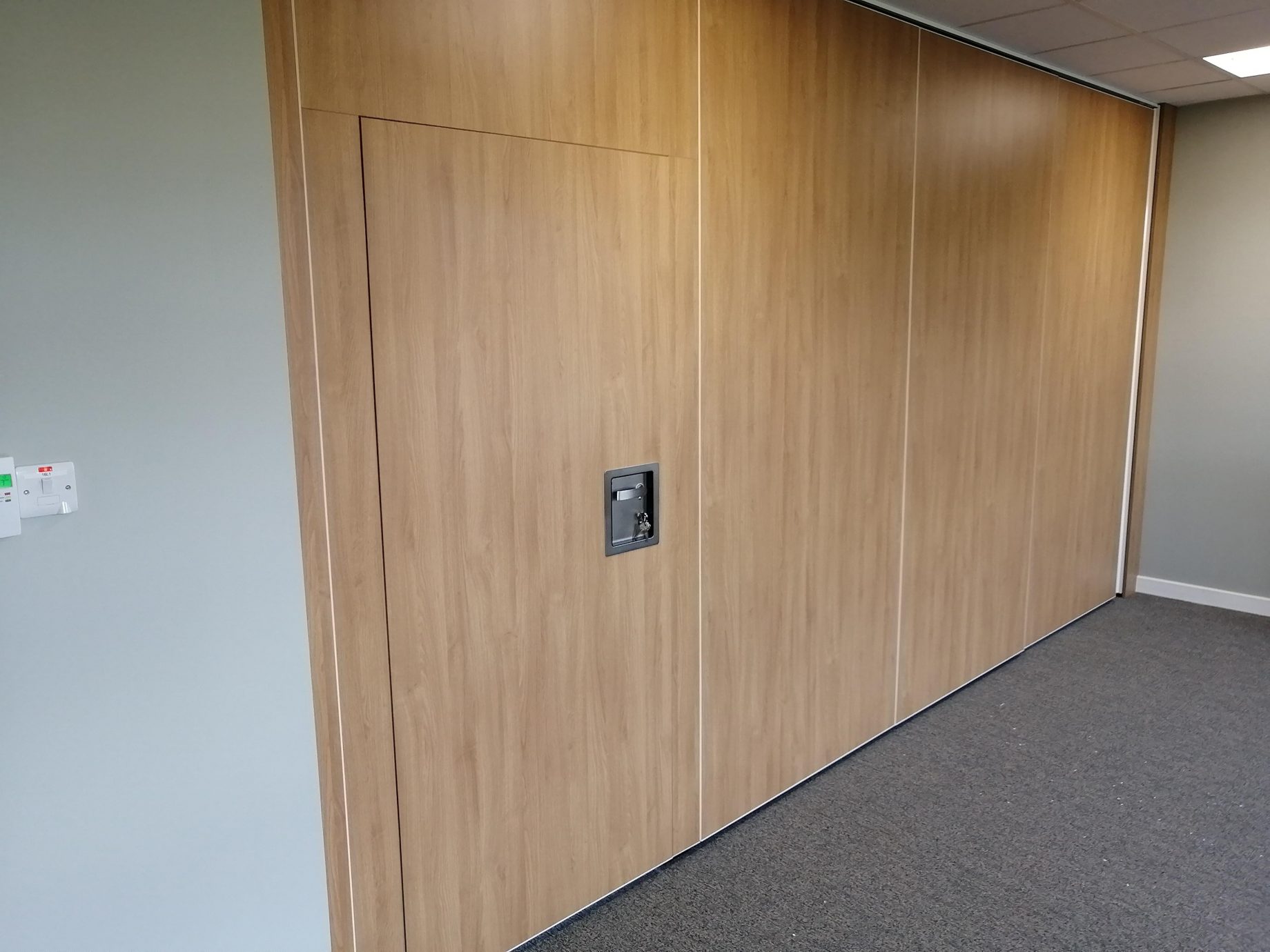

Panels with hinged pass door, single or double leaf inset pass door panels for access through
Panel widths from 650mm-1250mm
Nominal panel thickness 100mm
Full maintenance contracts available
Manufactured in the UK

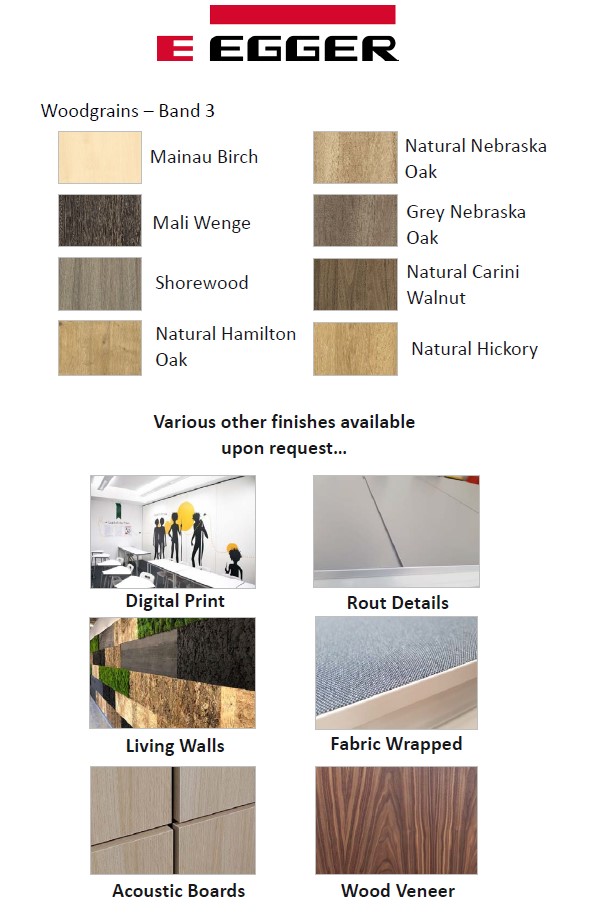

Finishing Options

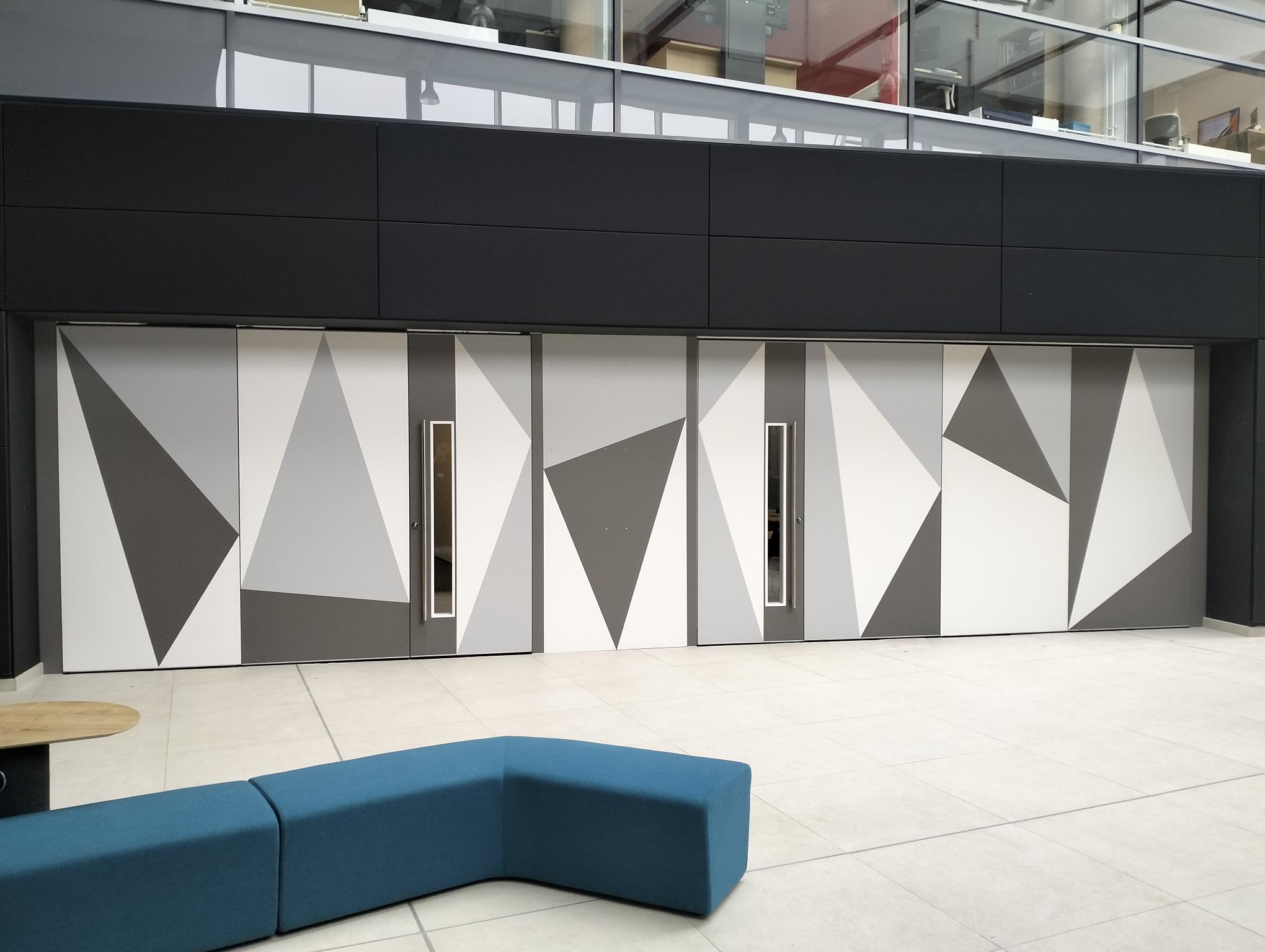

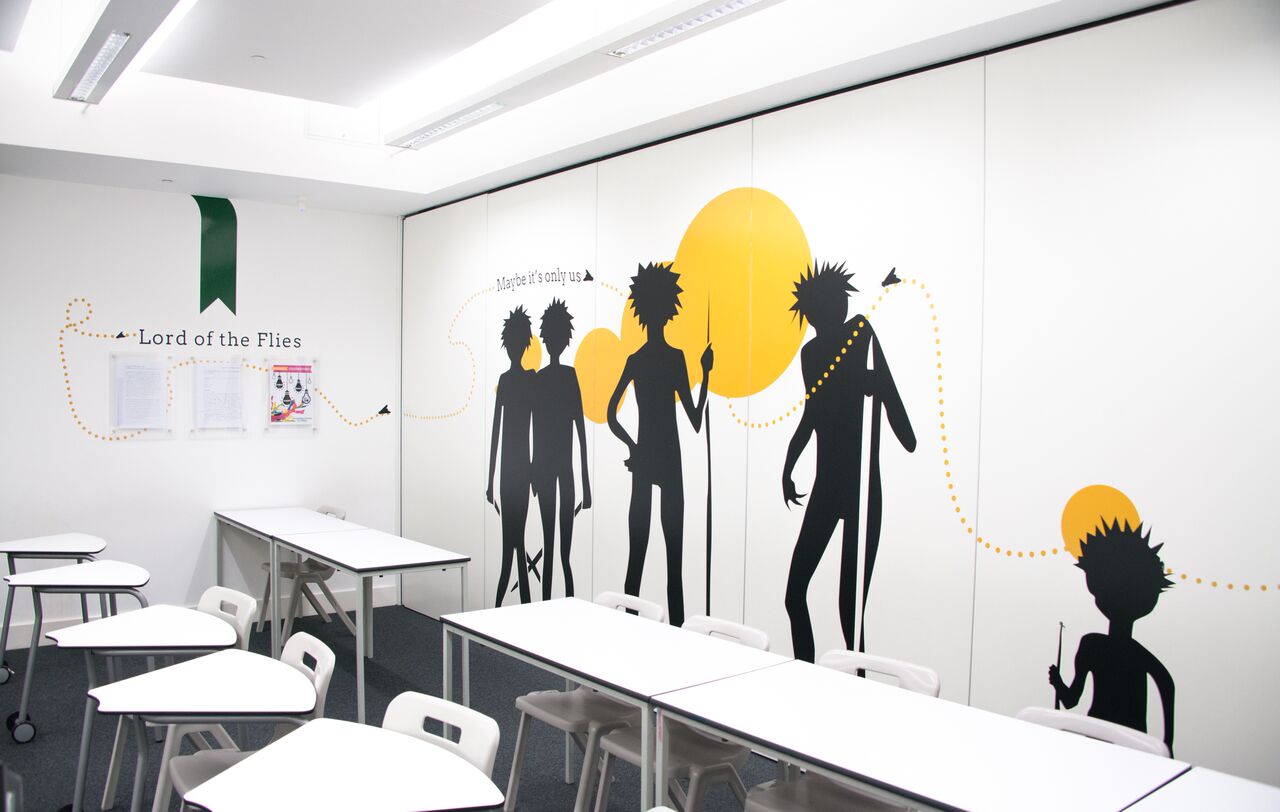

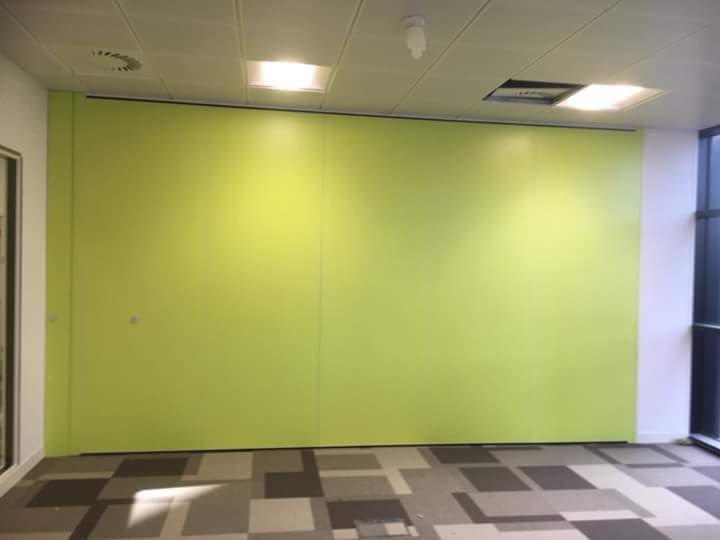

Our wall systems are available in a wide array of surface finishes to suit the design of its surroundings. Plus! Add bespoke surface decals.

Priming Options

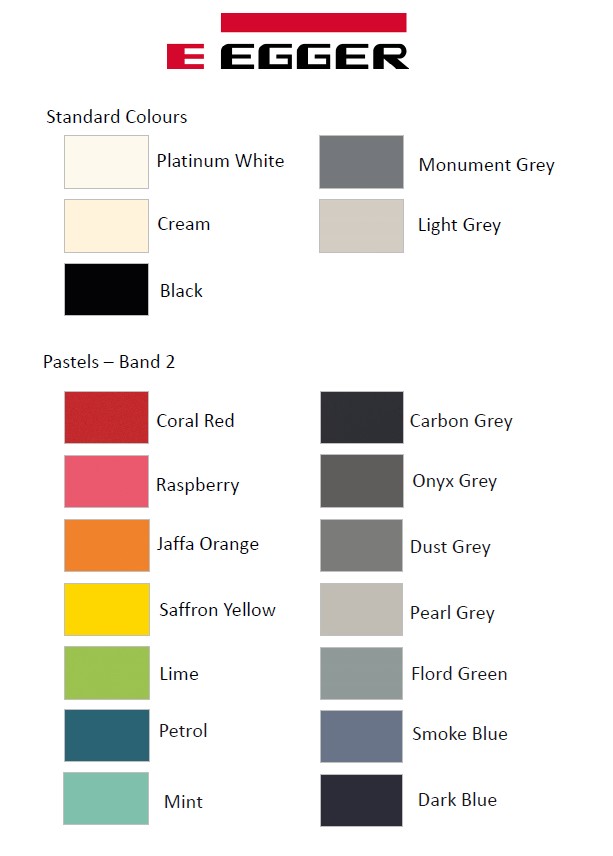

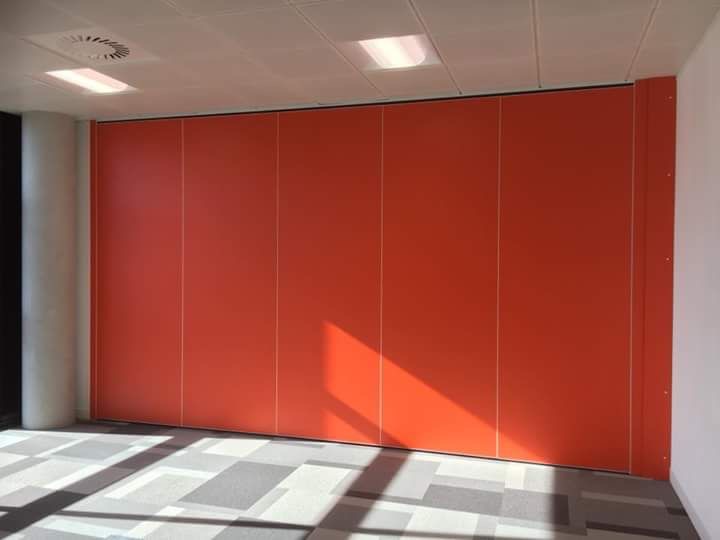

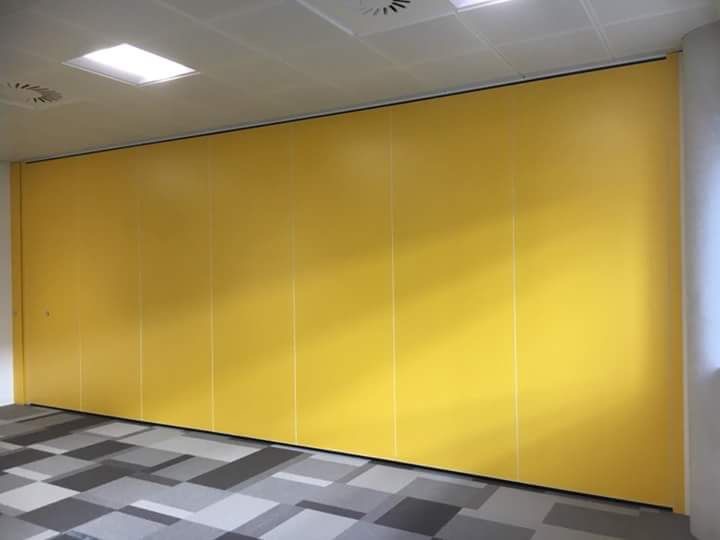

Uni Colours

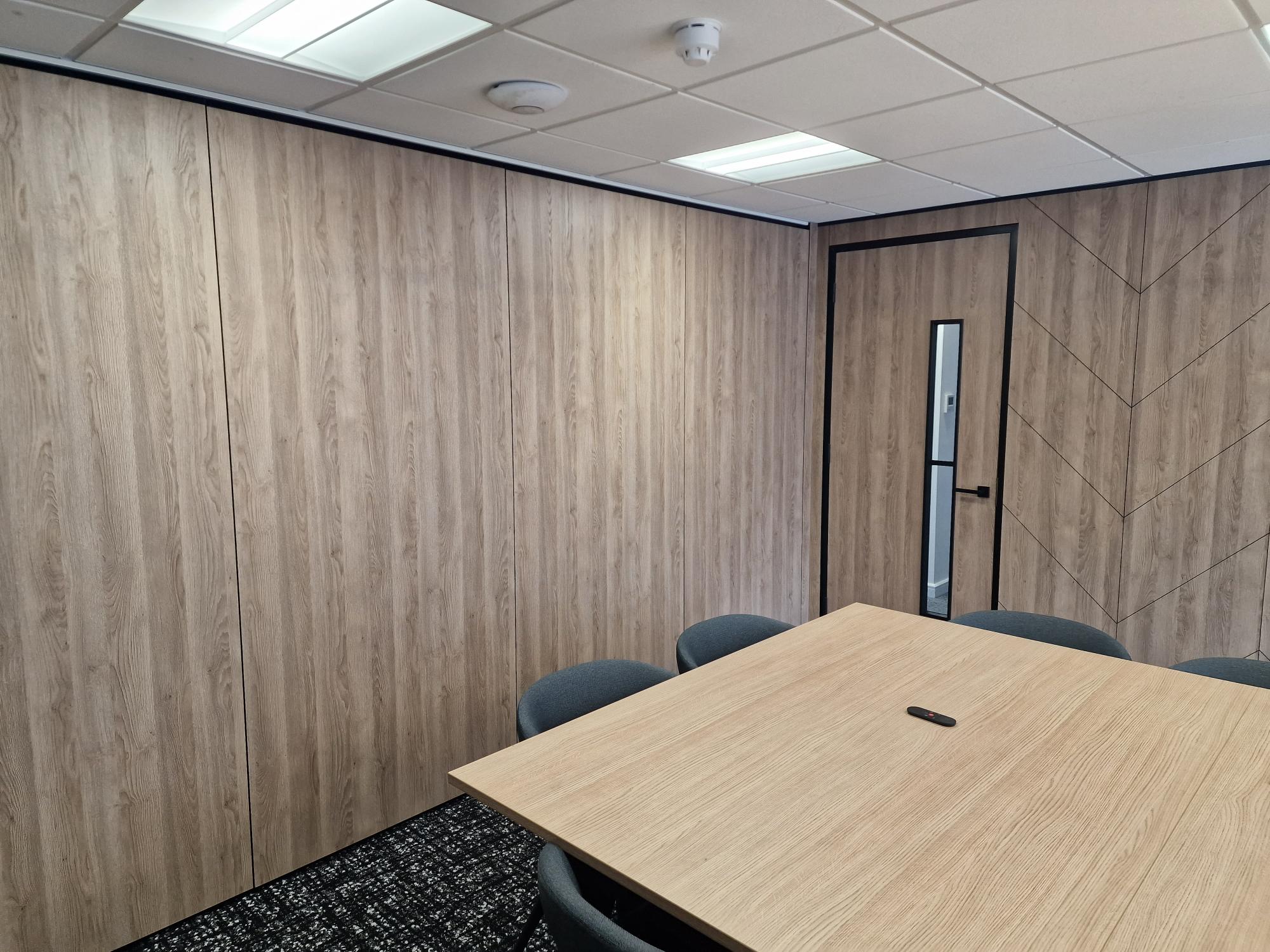

Wood Grain

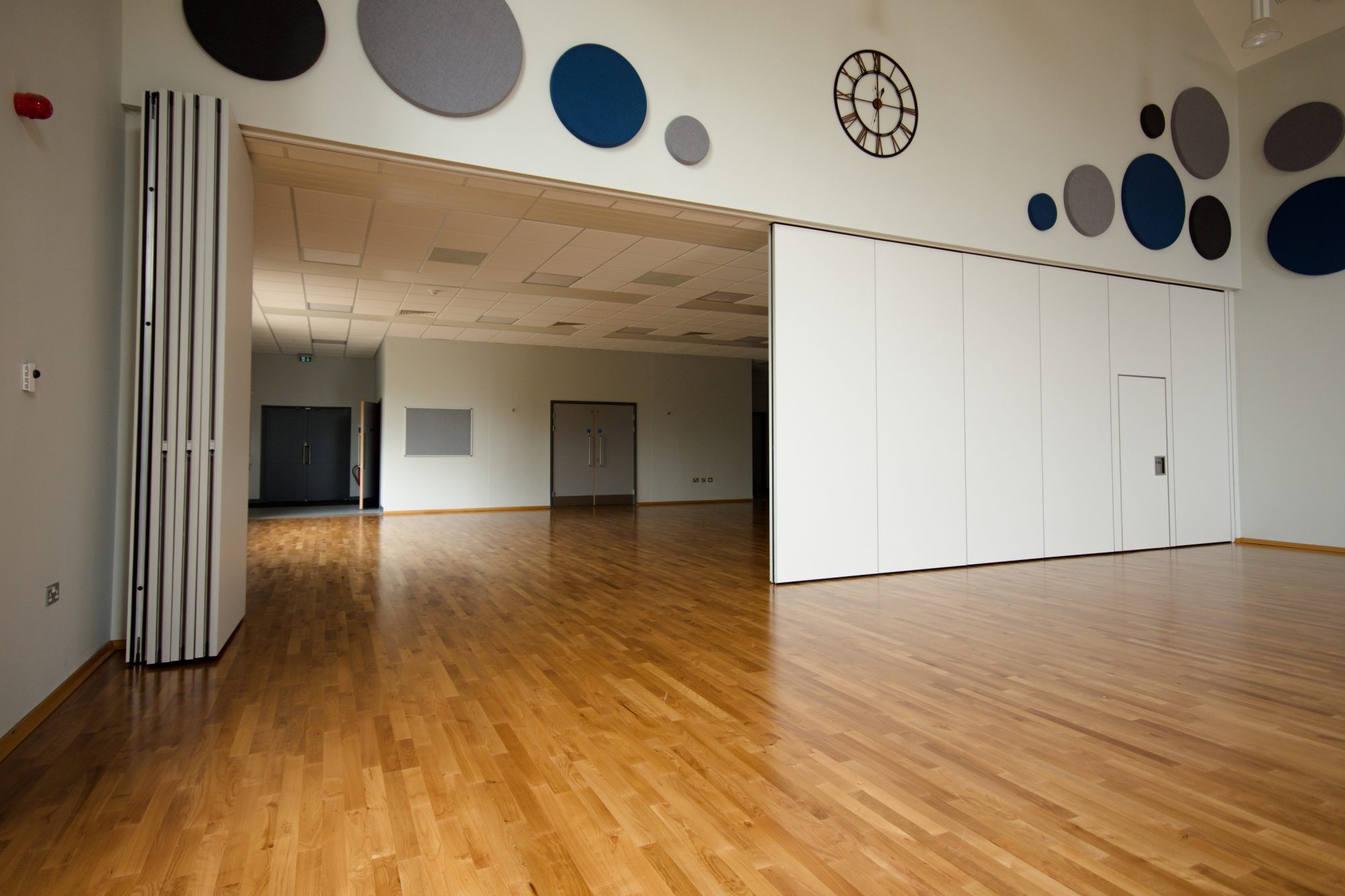

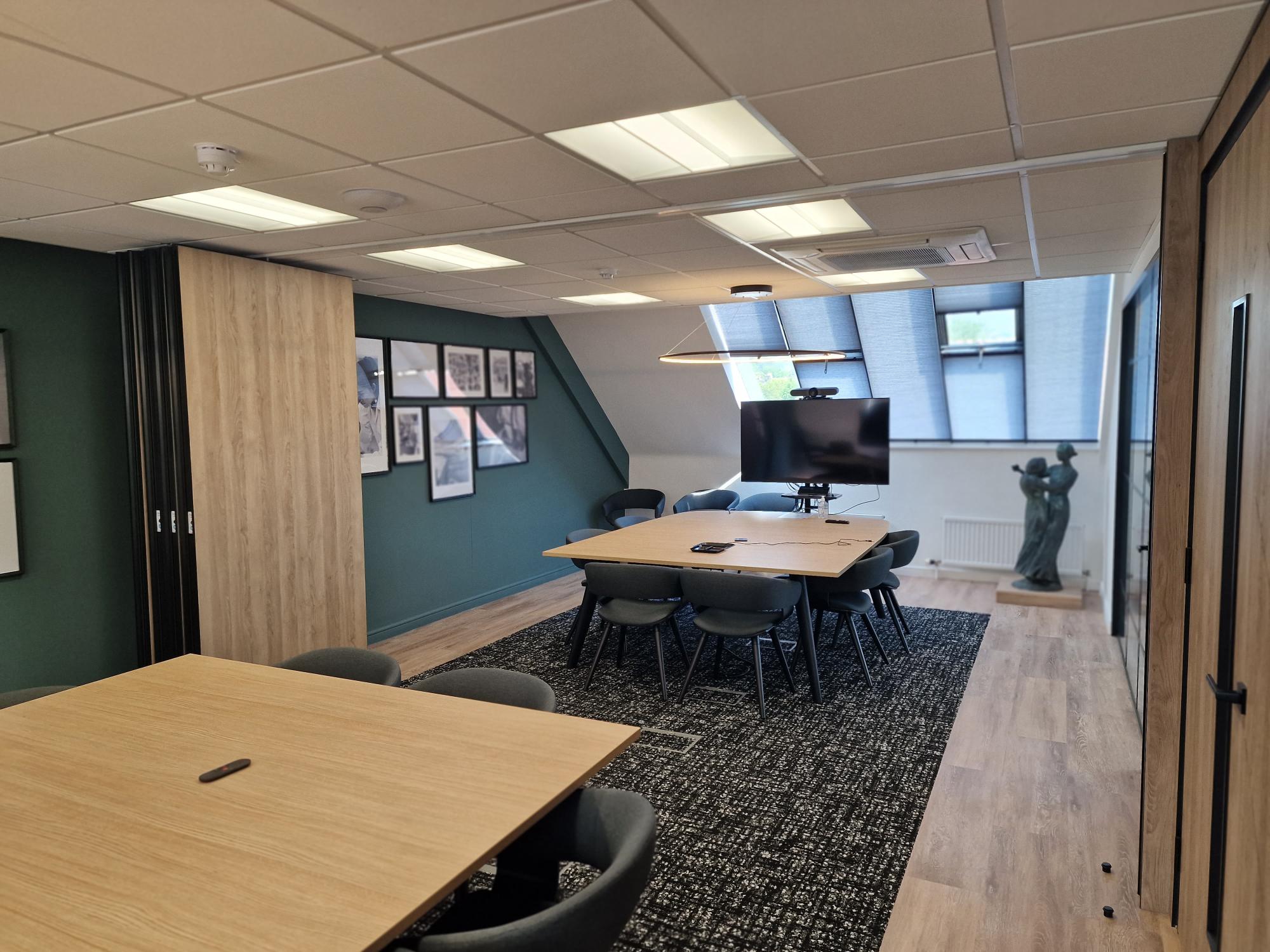

Stacking Options

There are 6 common stacking options for the Omega Range movable wall system as shown below:

Single Point Central Track

Double Point Track

Double Point Offset Track

Double Point Parallel Stack

Double Point – Bi-Parting Offset Stack

Double Point – Double Offset Stack

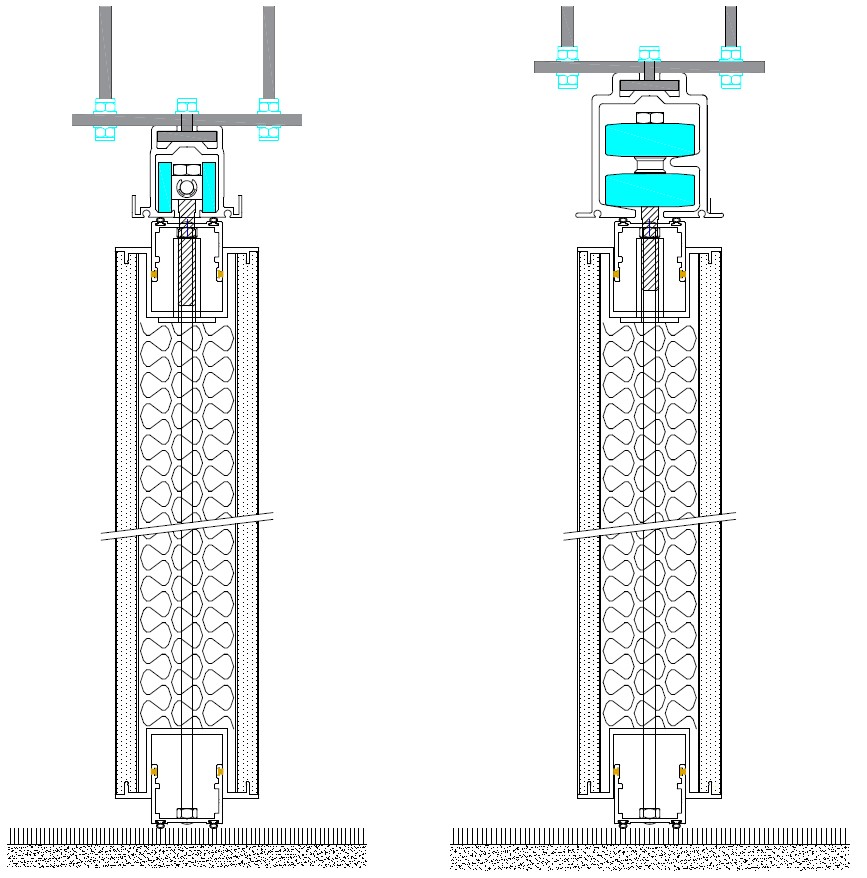

Suspension Options

There are 2 suspension options for the Omega Range:

Single Point

Double Point

Downloads

Fixing Drawings	PDF	DWG
Double Point Suspension To Concrete
Single Point Head Track with Pelmets
Single Point Head Track
Steel Track to Concrete
Single Point Head Track with Pelmets

Fixing Drawings	PDF	DWG
Wall Jamb
Telescopic Wall Jamb
Single Point Side Elevation
Single Point Head Track
Double Point Side Elevation
Double Point Head Track
Basic Panel Joint
Inset Pass Door Exposed Profile
Full Height Pass Door Detail Concealed
Plan Section – Angle – Exposed Profile
Plan Section – 3-Way Exposed Profile
Plan Section – 3-Way Concealed Profile
Plan Section – Inset Pass Door
