Zeta Straight Slider Partition sliding walls

A push and pull sliding walls system, which can be supplied bi parting or single wing, available top hung configuration or with a low profile floor track.

Introduction

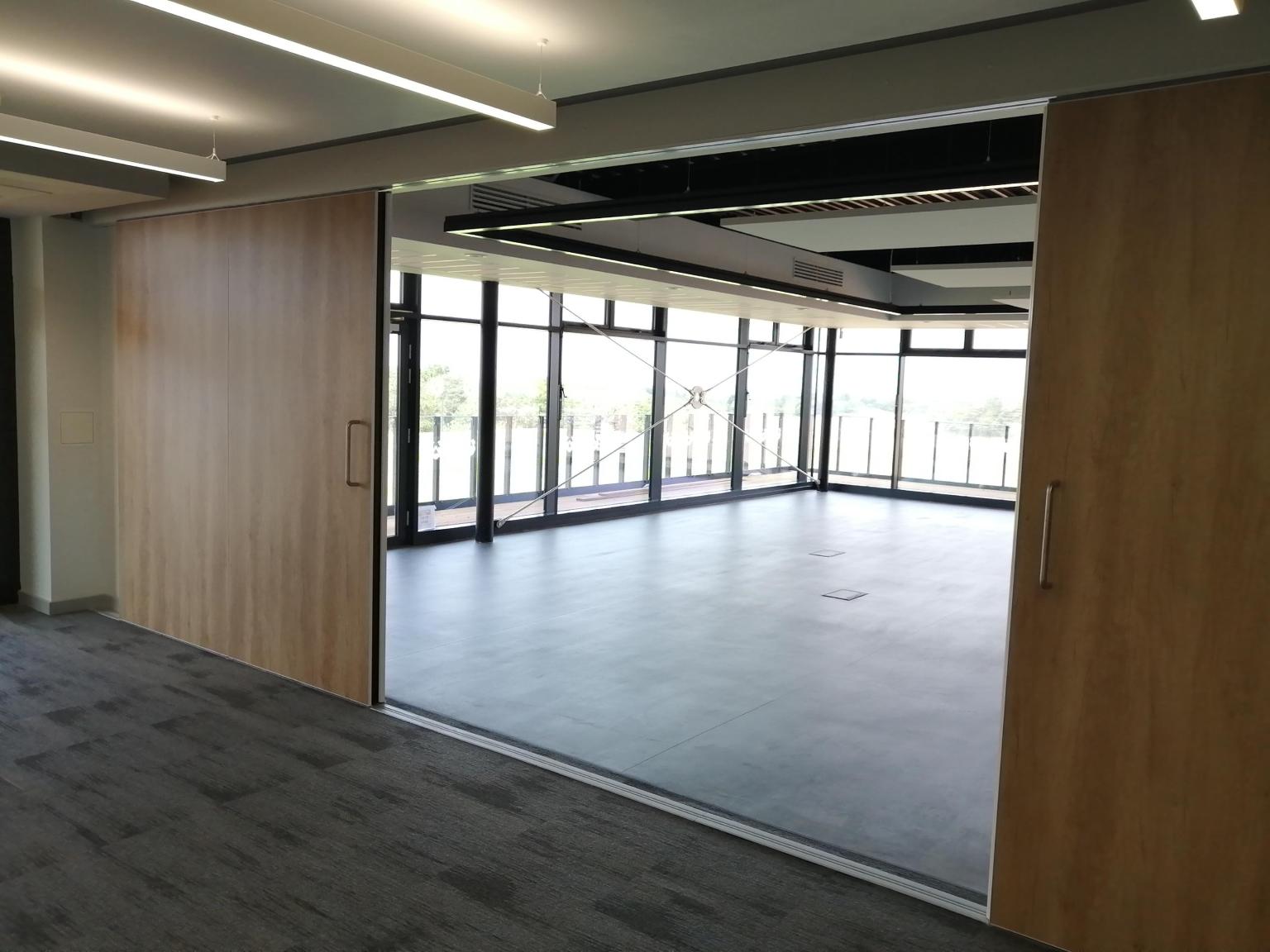

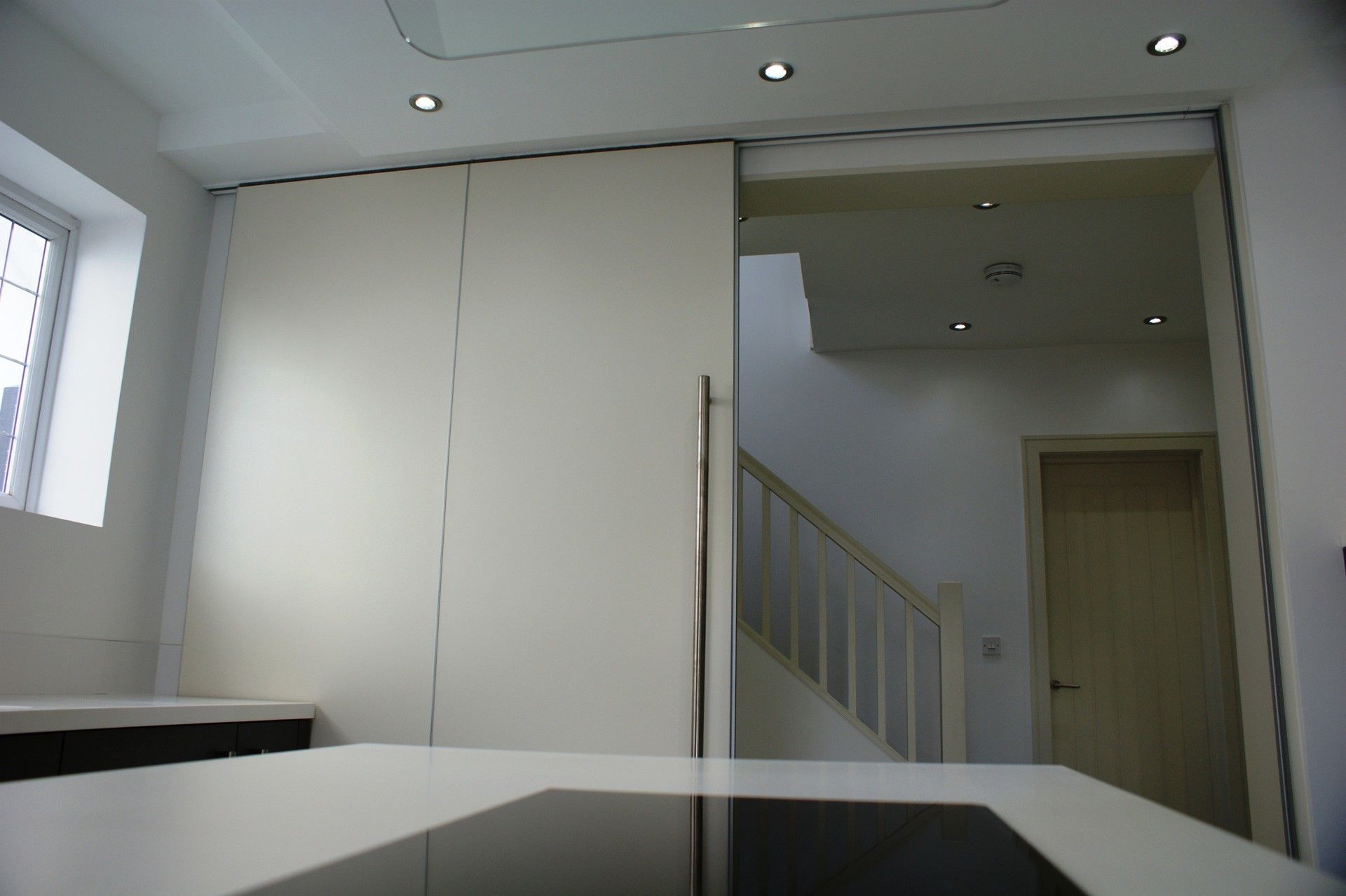

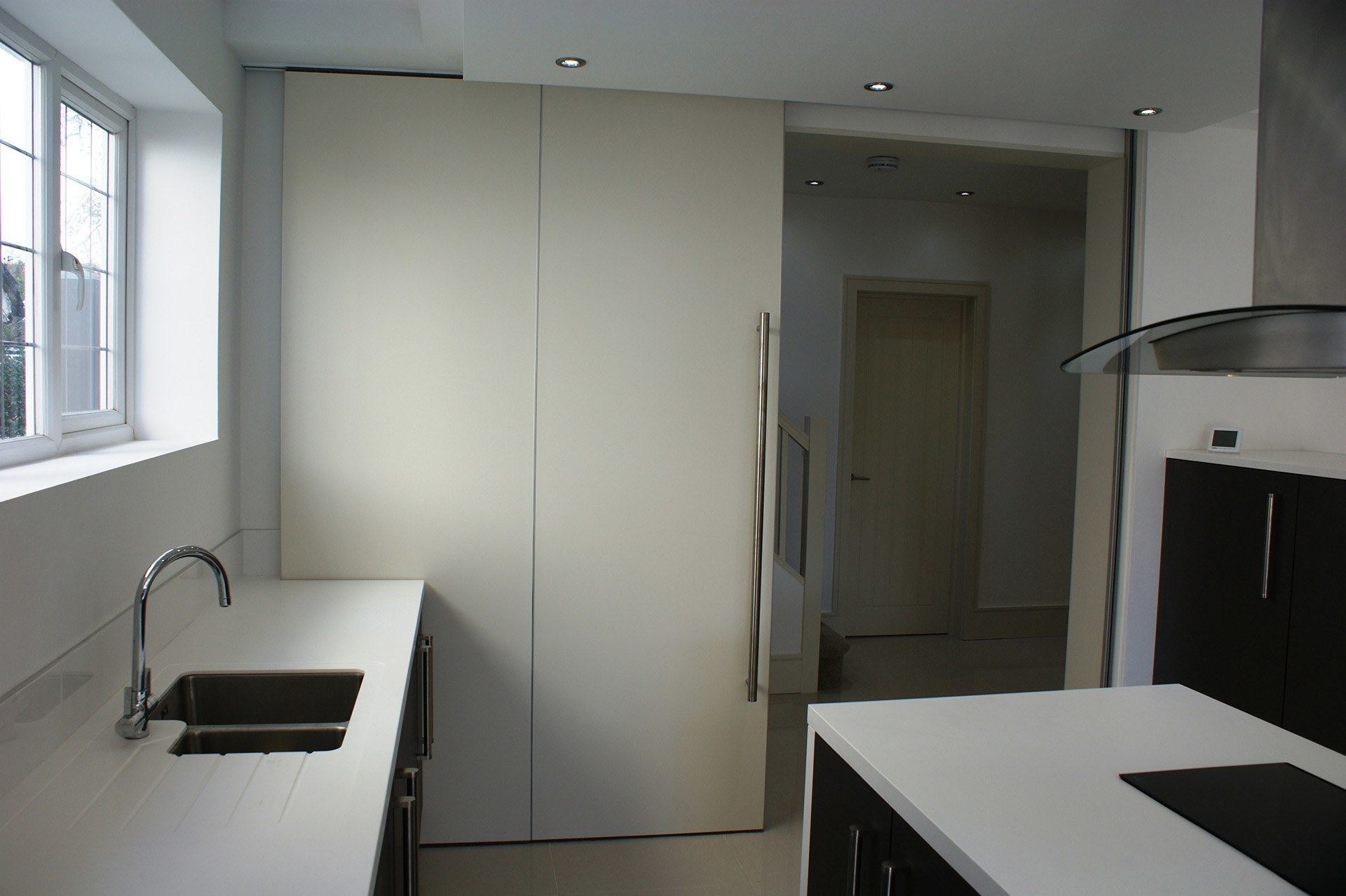

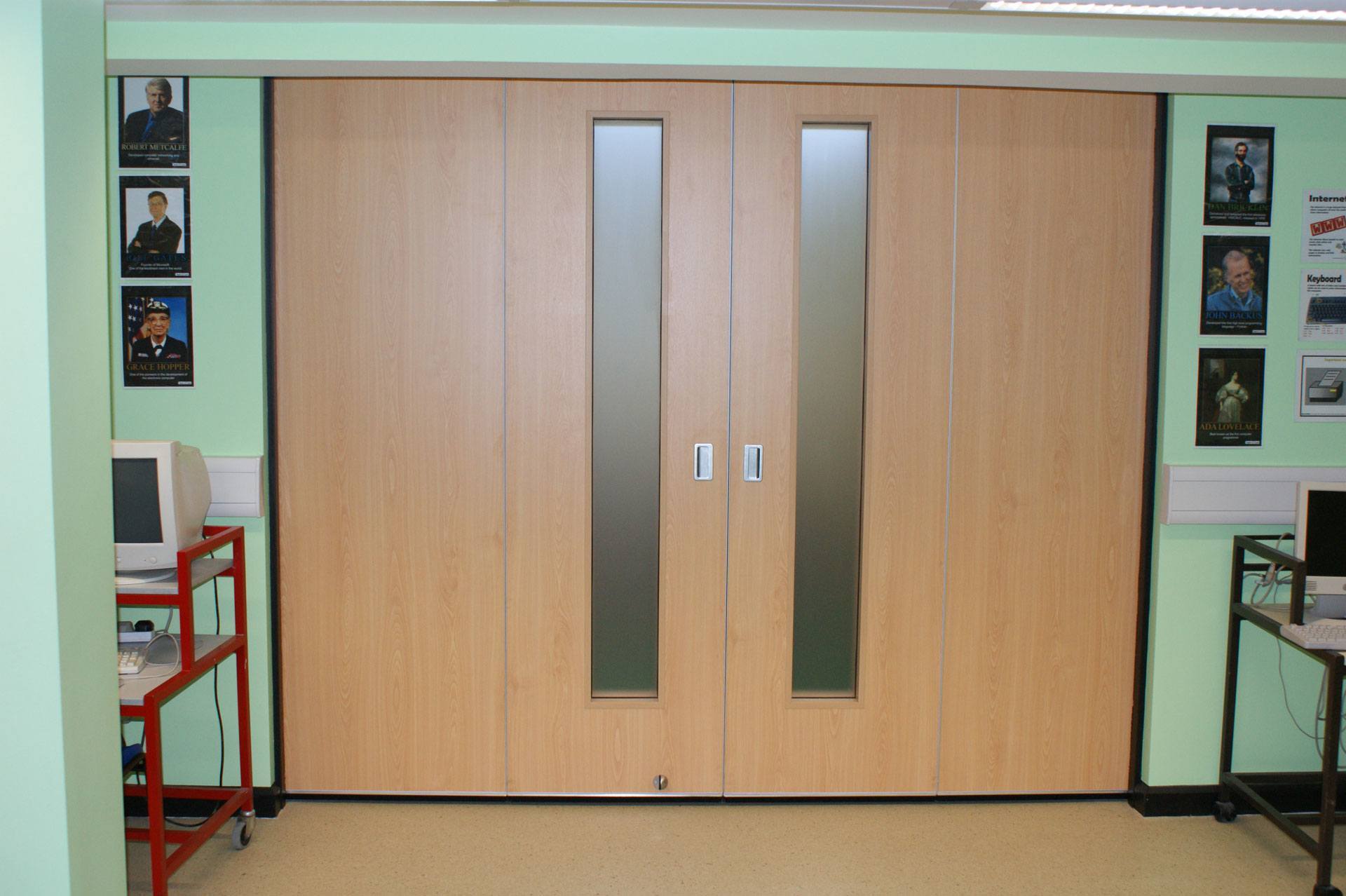

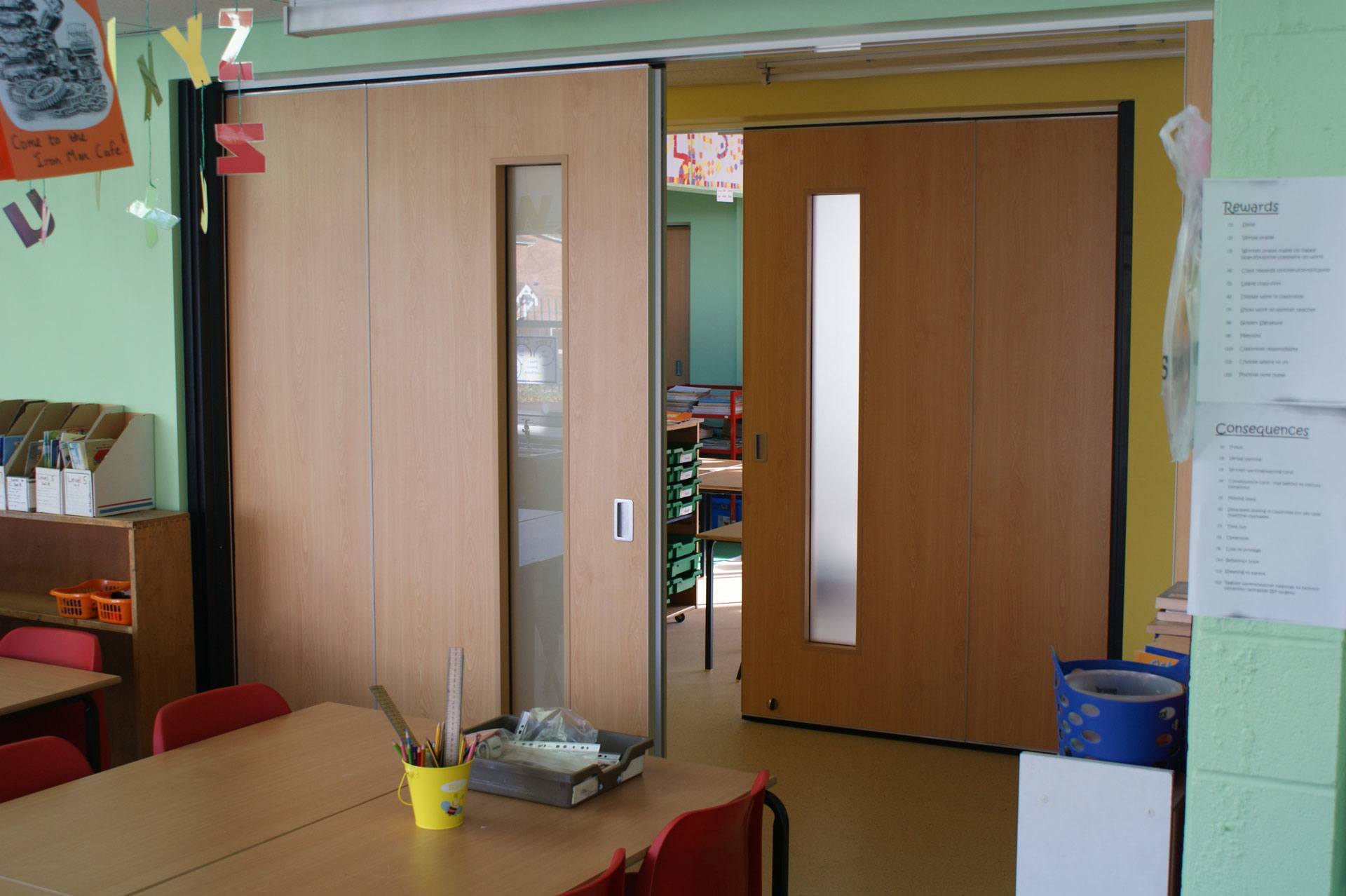

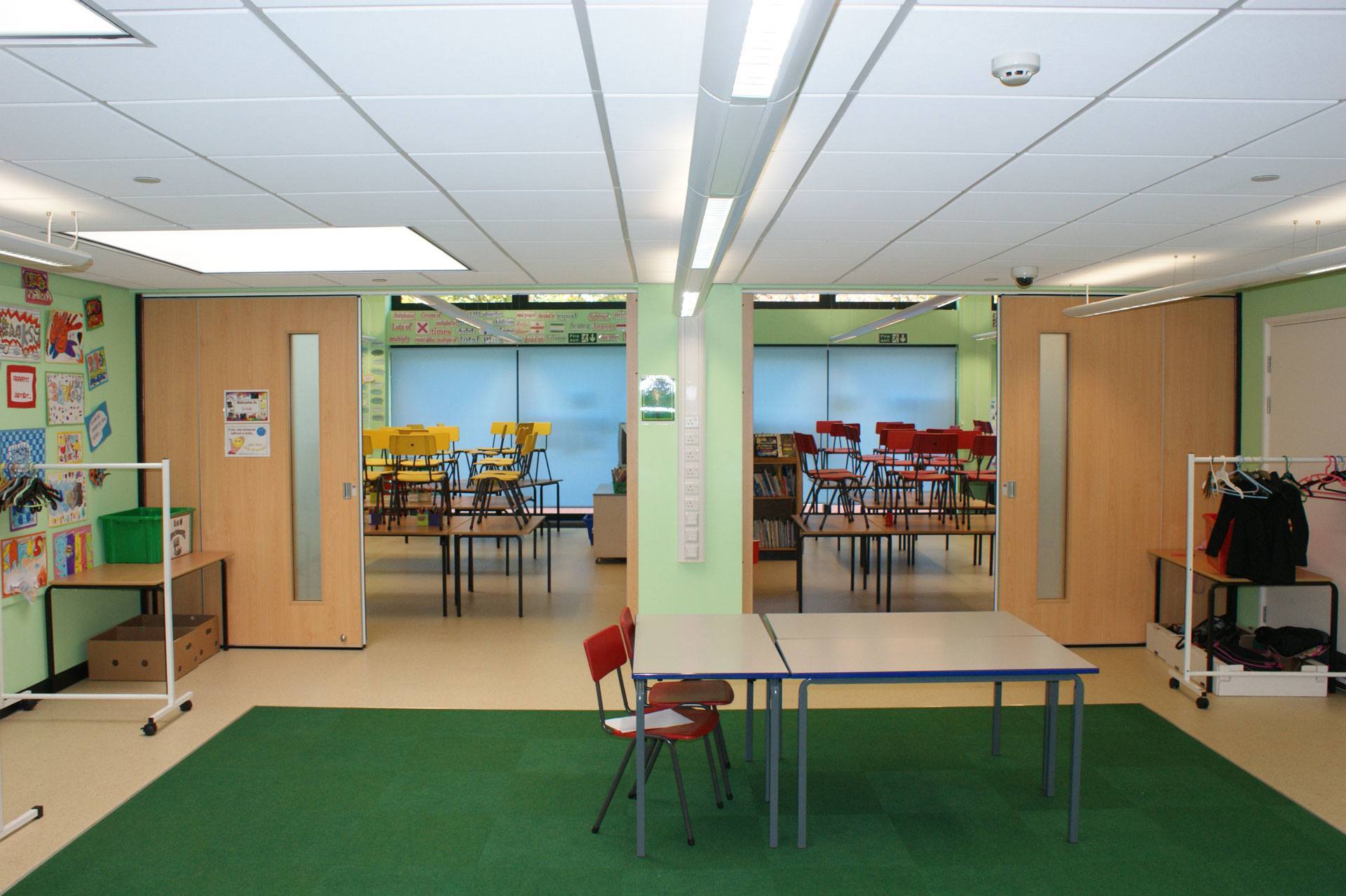

The Zeta Straight Slider is an easy to use top hung, push/pull straight sliding system offering a mid level acoustic performance. Fitted with fixed top and bottom brush seals it can offer an acoustic insulation up to 45dB.

With a maximum panel width of 1,220mm, panels can be joined together on site to form larger openings. For added flexibility, or when there is no suitable structure to suspend from, the Zeta Straight Slider can be supplied as a bottom rolling option, running along a low profile floor track.

Technical Specs

Acoustic rating 45dB
Applications up to 6000mm high
Maximum single panel width 1,220mm
Panels can be joined together on site to form larger openings
Maximum single opening width 3,660mm (3 panels joined together)
Maximum bi-parting opening width 7,320mm (2 x 3 panels joined together)

Top hung with no floor track or floor supported options
Available with virtually any surface finish
Ideal for apartment blocks, flats, offices, hotels, leisure centres
Panel widths from 400mm-1,220mm
Full maintenance contracts available
Manufactured in the UK

Finishing Options

Our wall systems are available in a wide array of surface finishes to suit the design of its surroundings. Plus! Add bespoke surface decals.

Priming Options

Uni Colours

Wood Grain

Stacking Options

There are 4 common stacking options for the Sigma Range movable wall system as shown below:

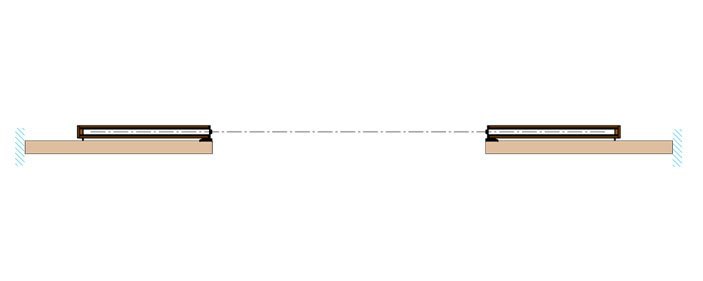

Bi-Parting Against Wall

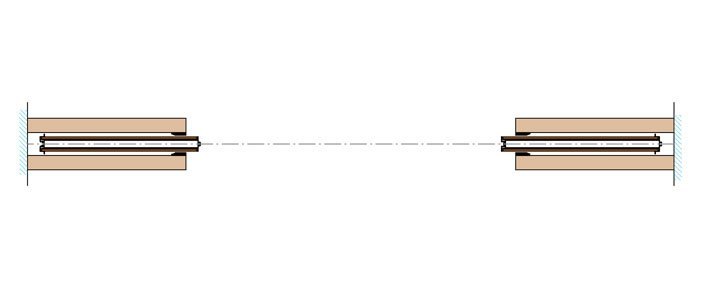

Bi-Parting in Pocket

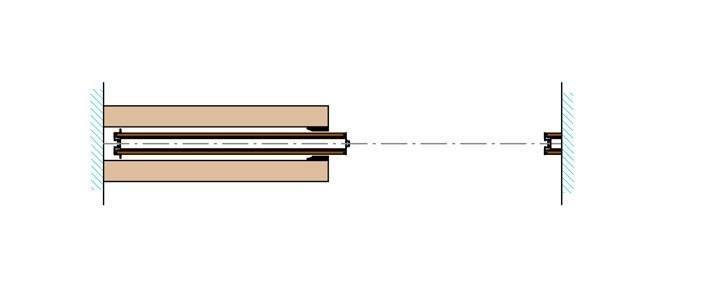

Wing in Pocket

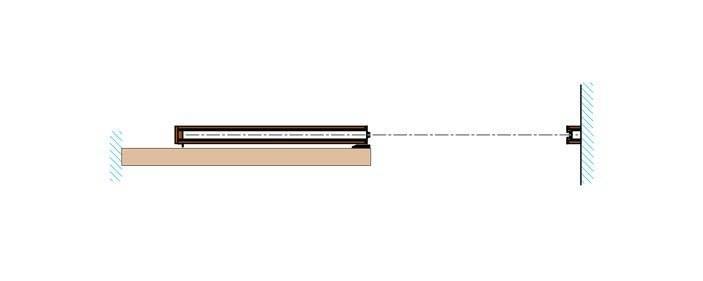

Wing Against Wall

Suspension Options

There are 2 suspension options for the Sigma Range:

Top Hung

Bottom Rolling

Downloads

Technical Drawings	PDF	DWG
Panel Abutment Details
Section Through – Top Hung with optional Pelmet
Wall Jamb
Plan View in Pocket
Plan View Beside Wall
